Structural Glazed Tile (SGT), commonly referred to as Glazed Block, are ceramic glazed hollow masonry units for loadbearing and non-loadbearing wall applications. SGT can be used as structural walls, partition walls, multi-wythe walls or veneers. The ceramic finish is available in wide palette of colors or can be custom ordered.

Traditional Glaze Colors

Traditional Glaze Colors

Traditional Glaze Colors

Traditional Glaze Colors

4W Series Download 4W Series Overview

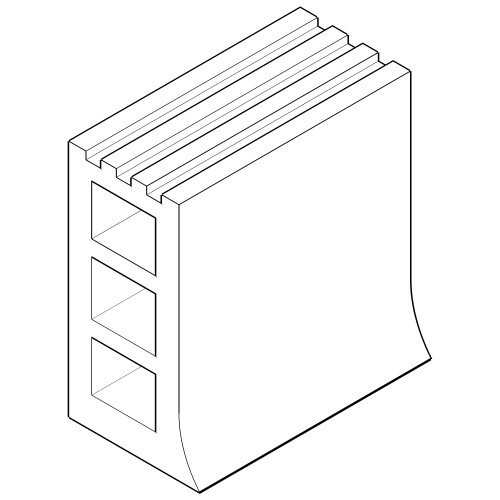

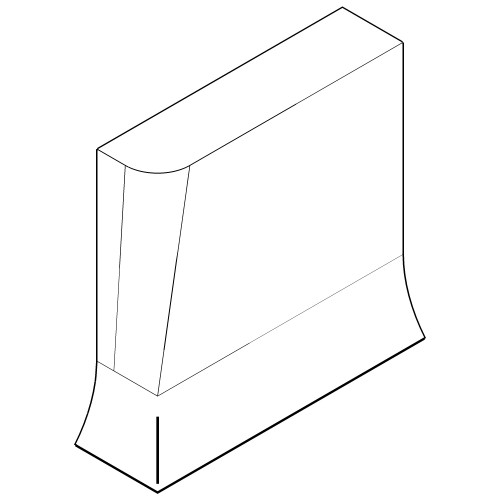

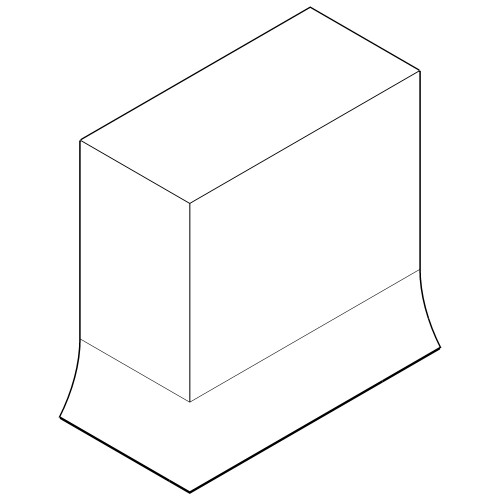

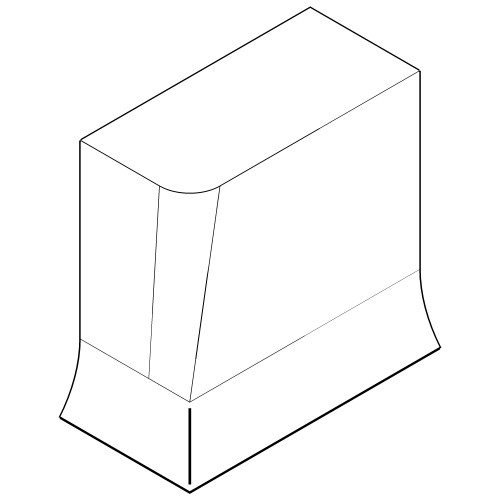

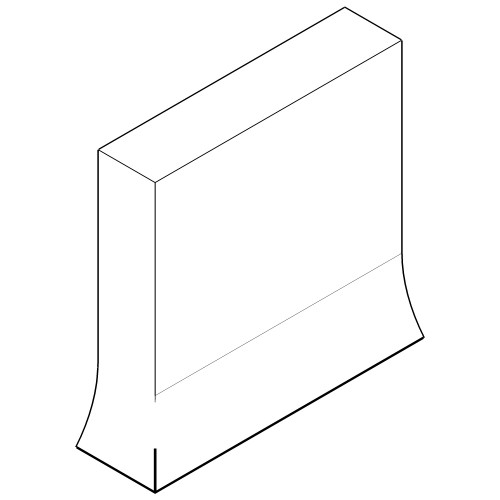

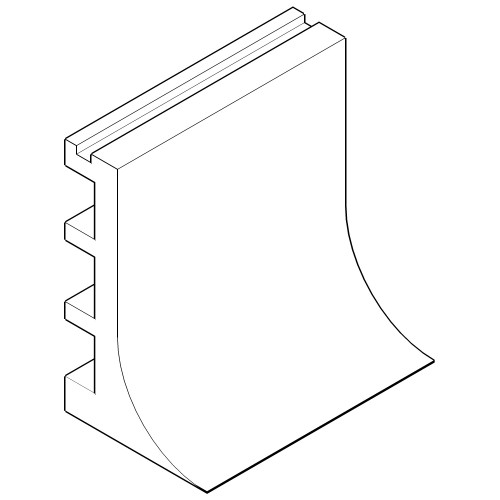

4W Series - Cove Base

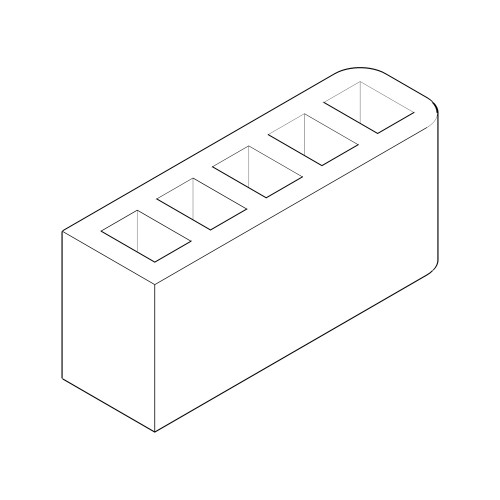

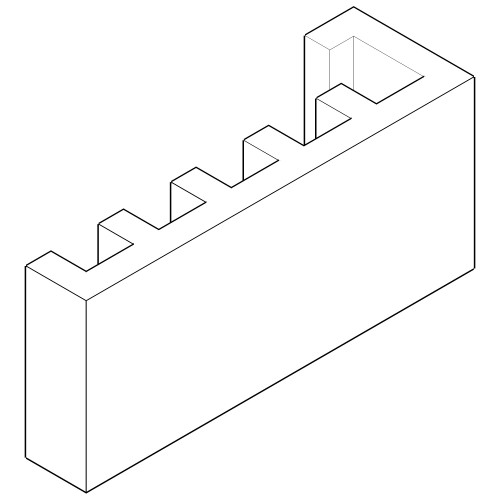

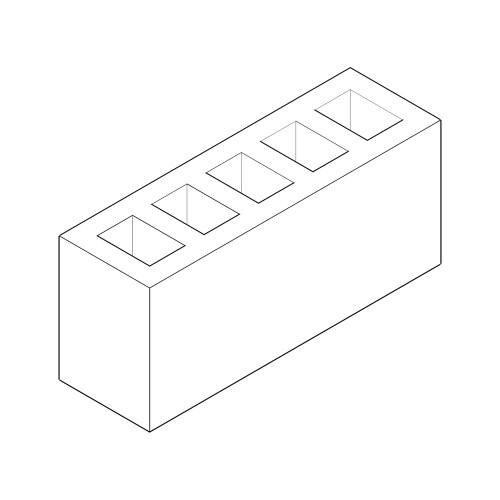

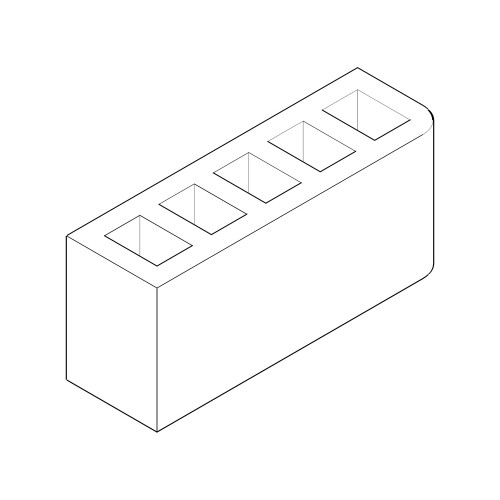

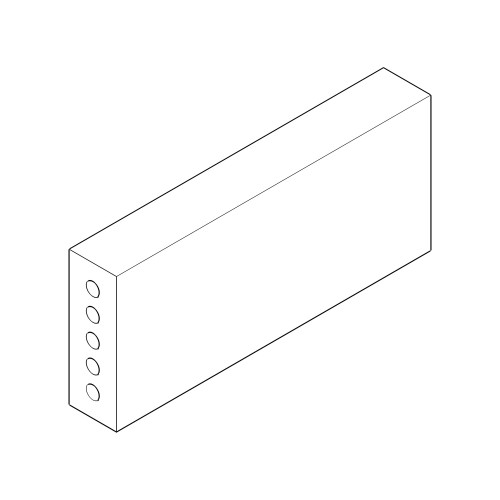

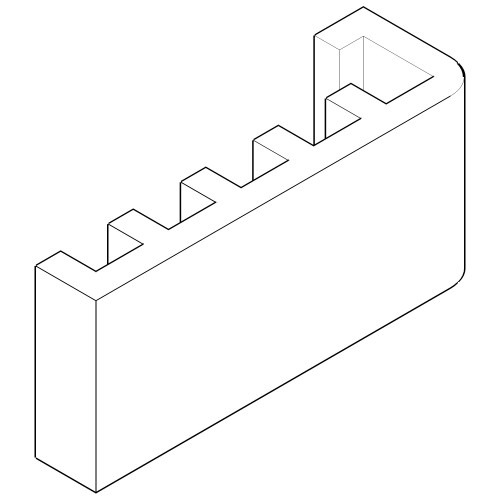

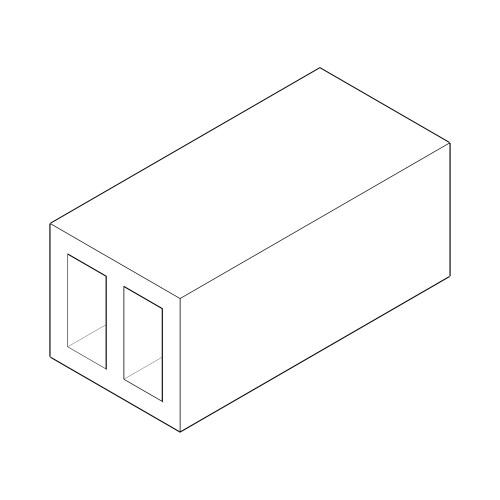

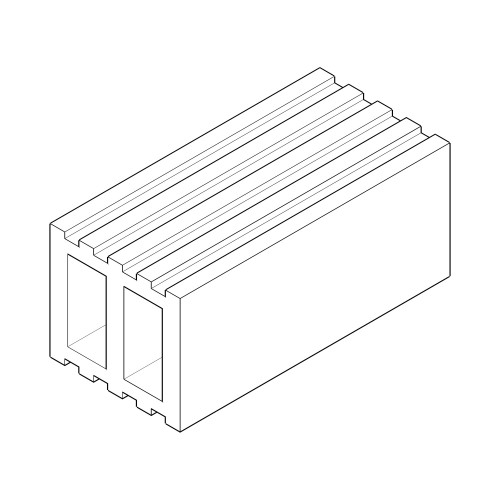

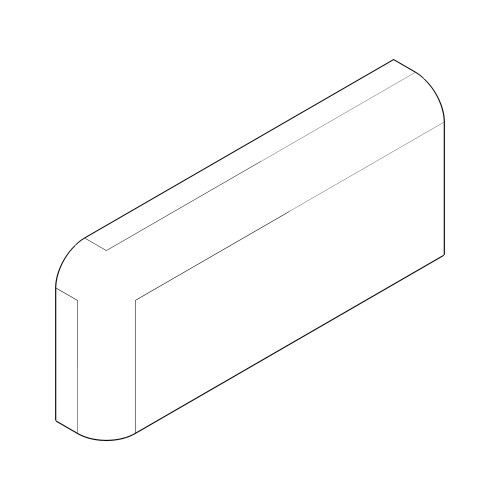

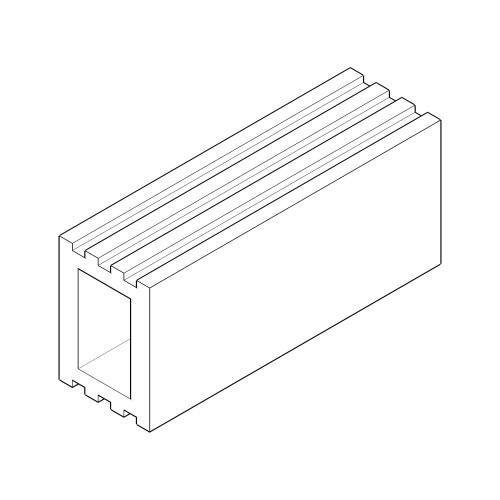

6T Series Download 6T Series Overview

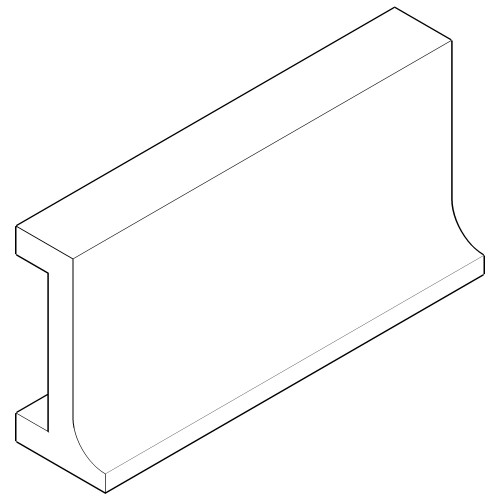

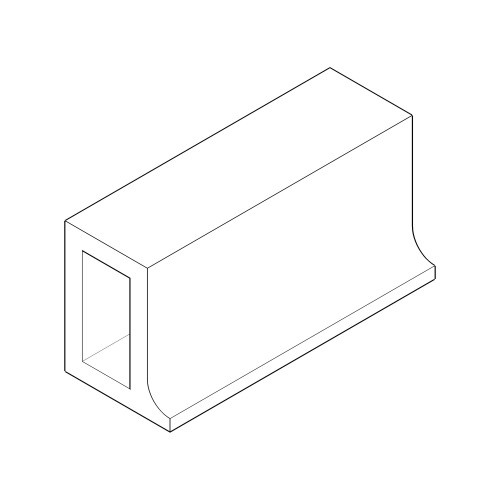

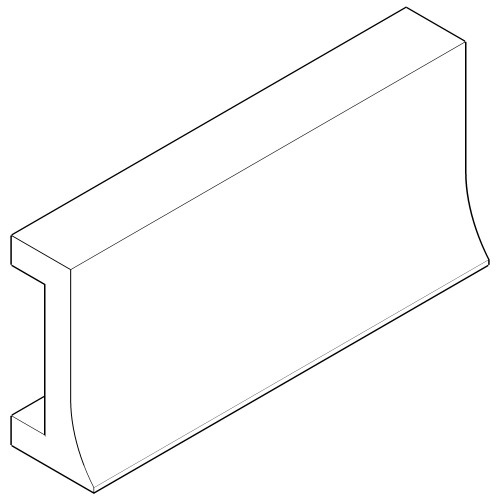

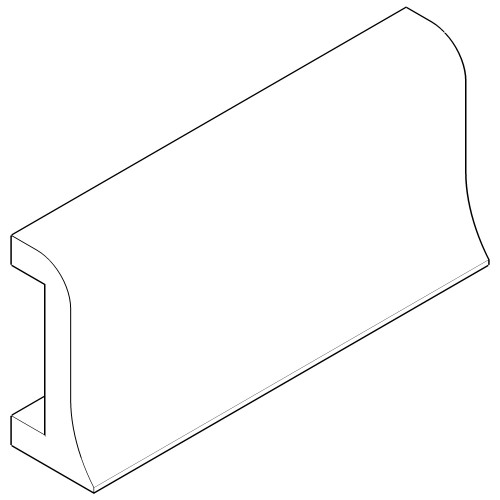

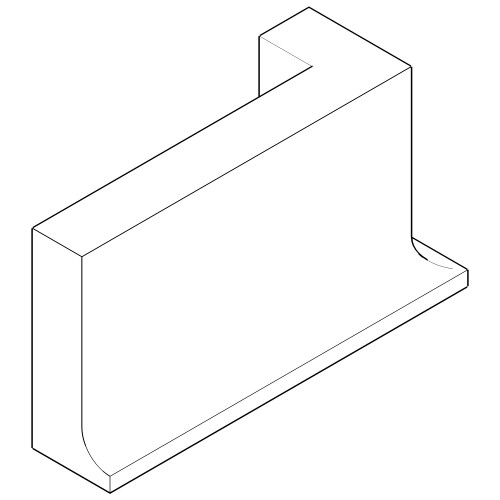

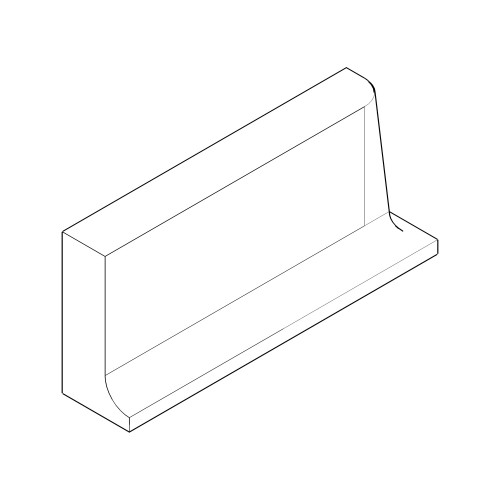

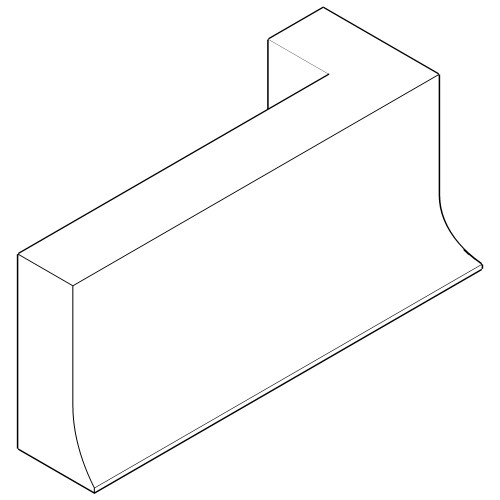

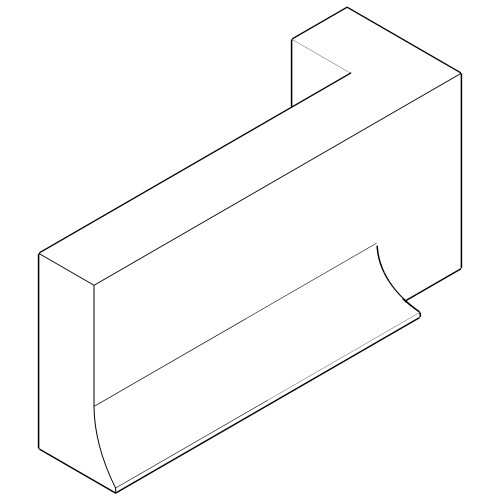

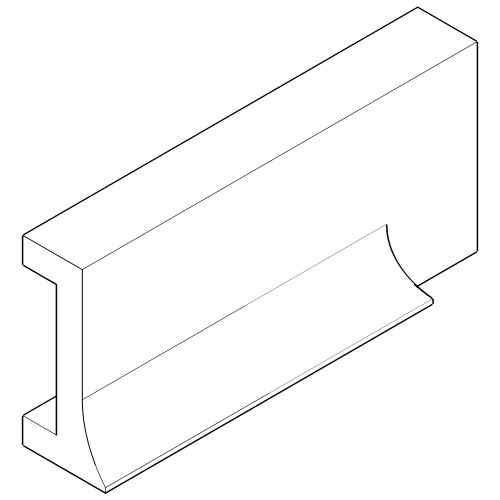

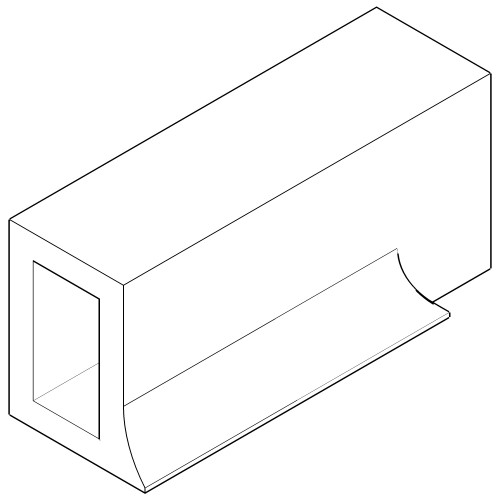

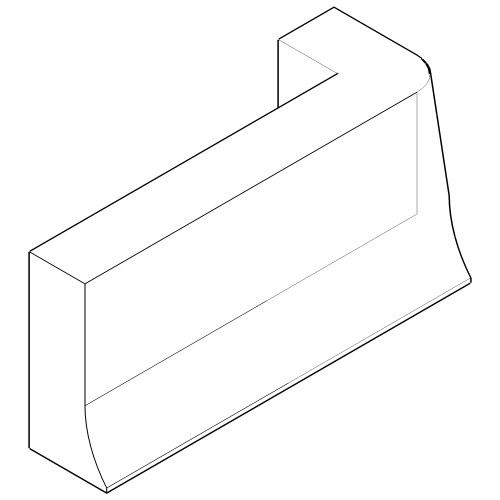

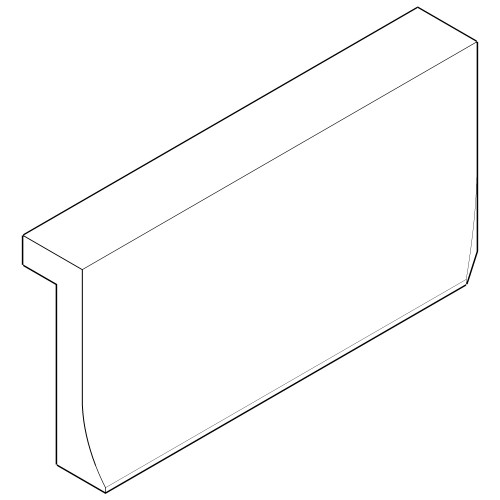

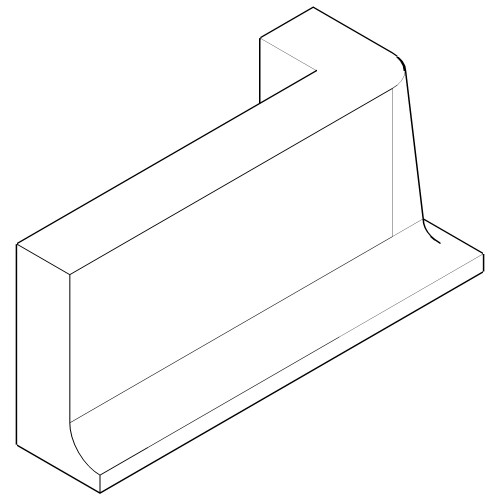

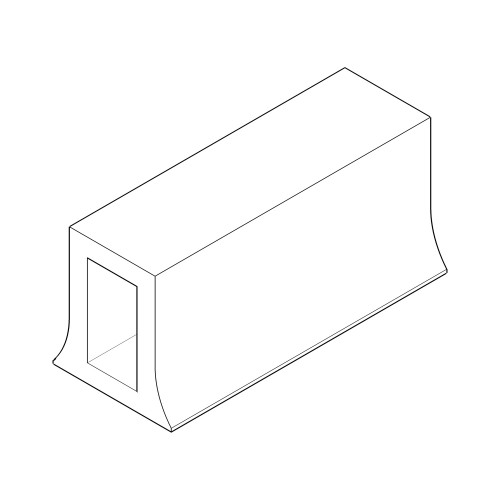

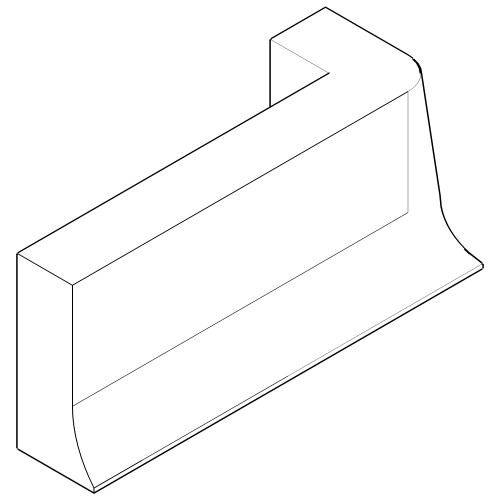

6T Series - Cove Base

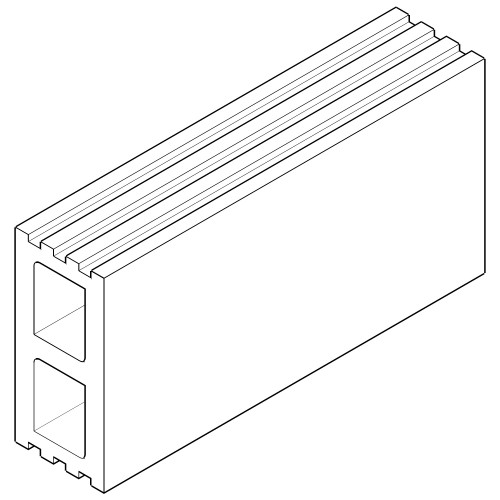

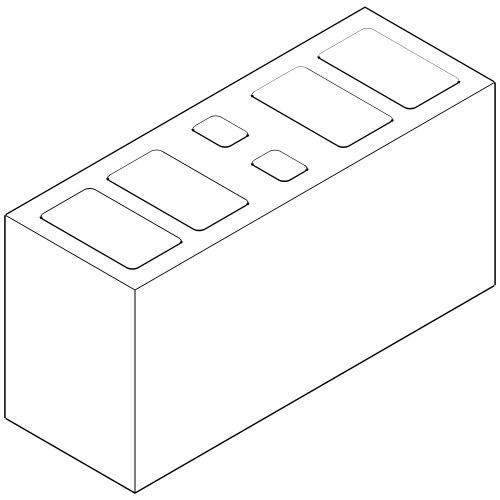

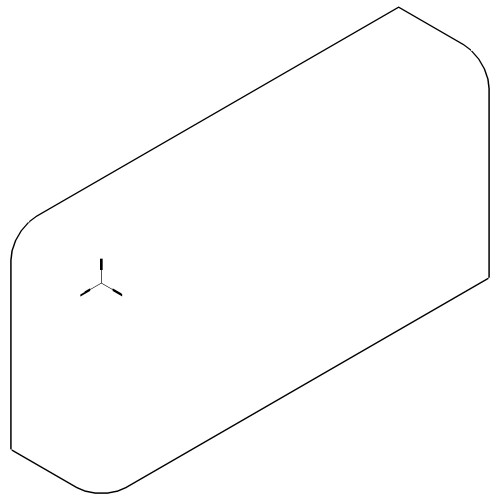

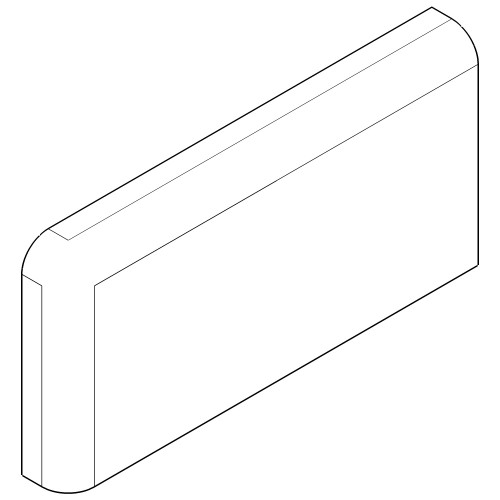

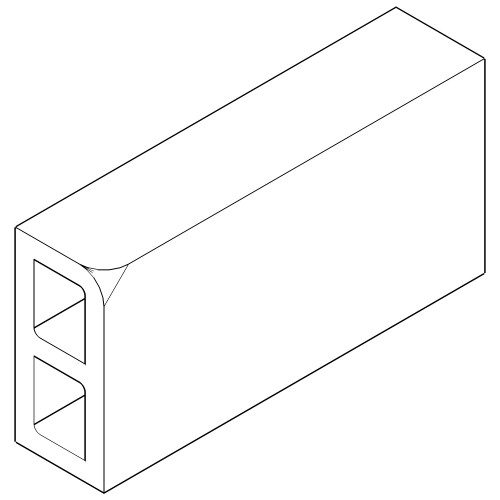

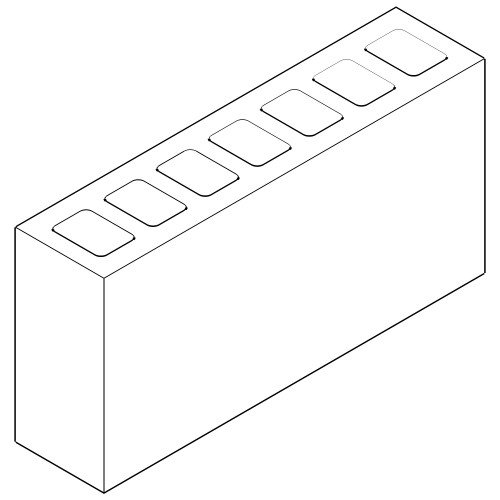

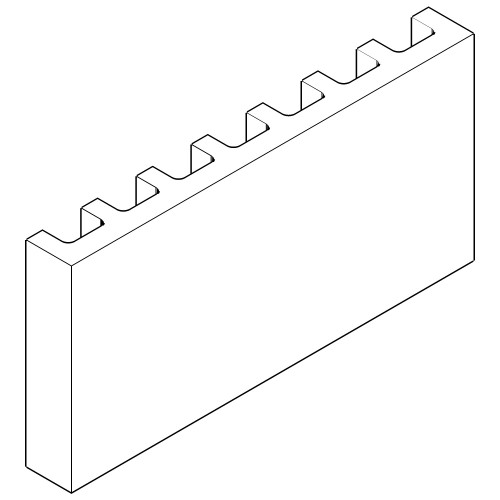

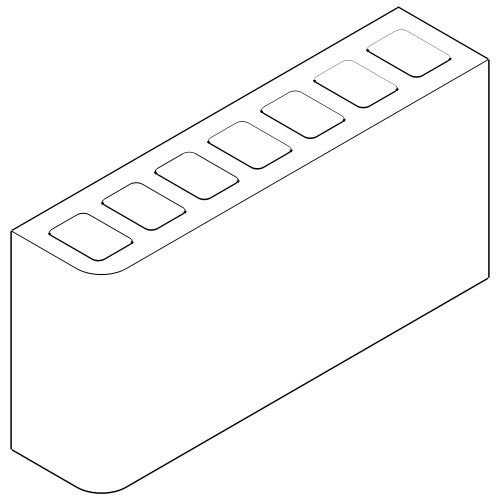

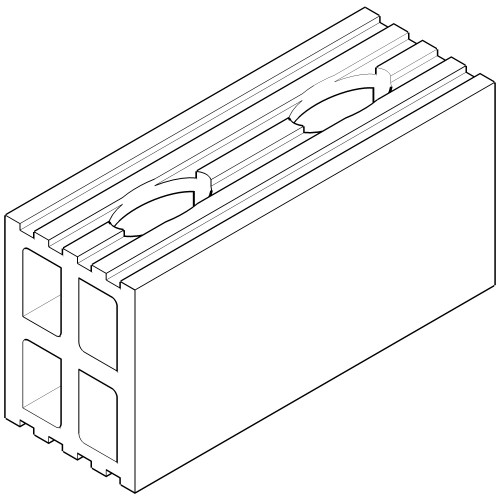

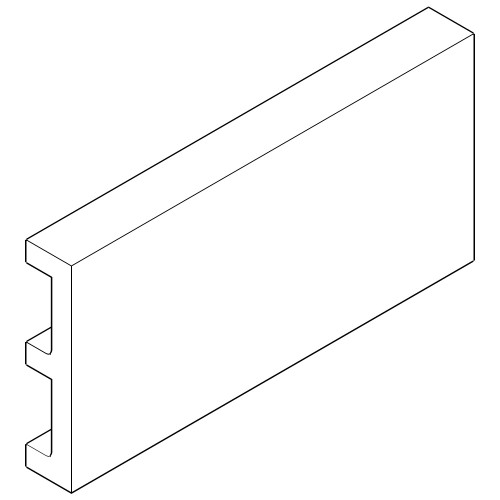

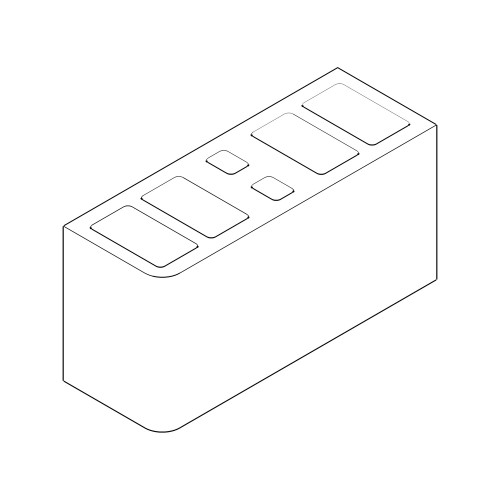

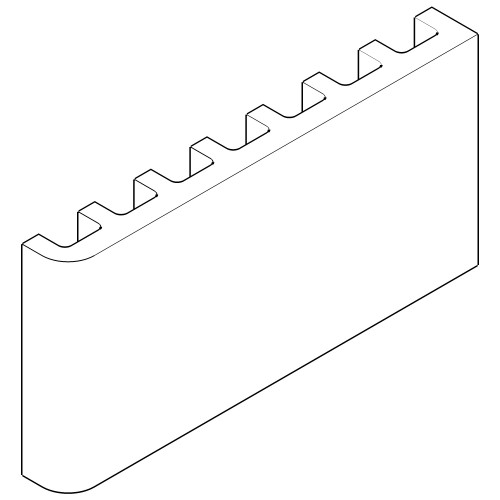

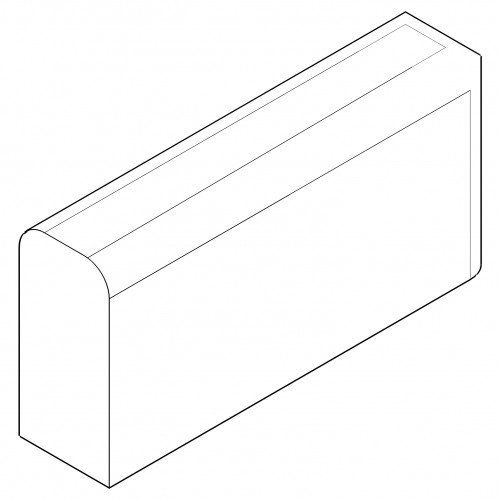

8W Series Download 8W Series Overview

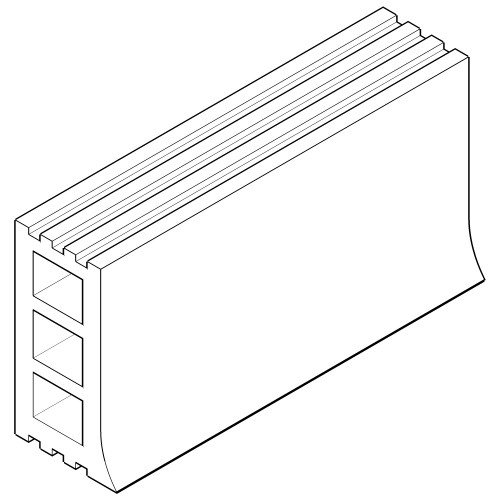

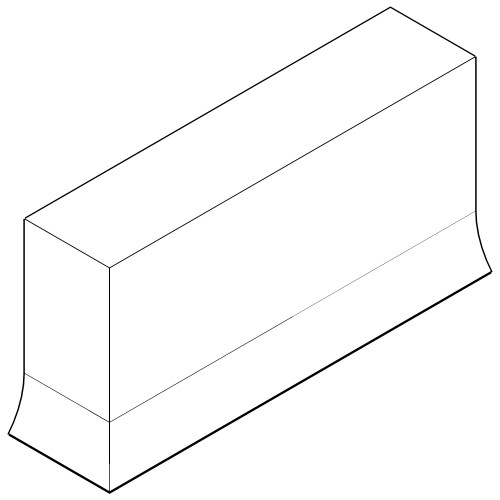

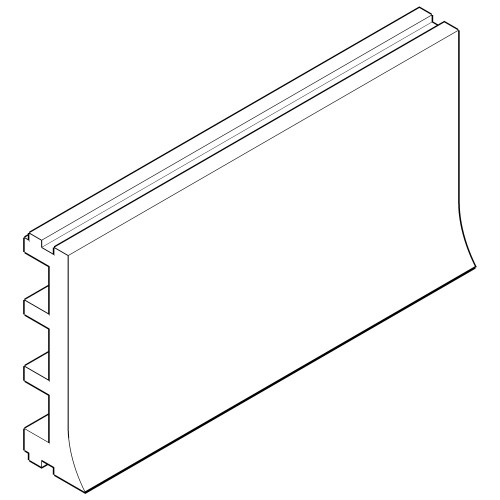

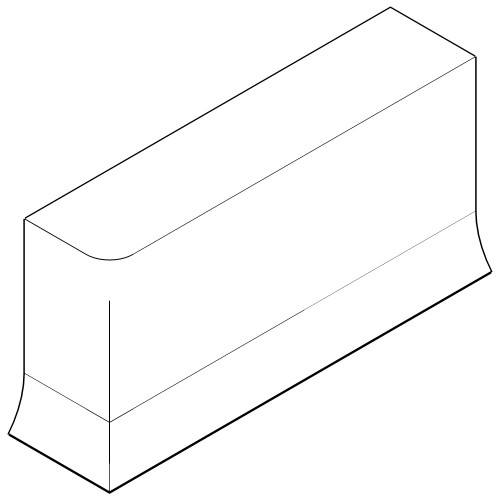

8W Series - Cove Base

SPECIFICATIONS:
Structural Glazed Tile (Glazed Block) shall be ceramic glazed fire clay units as manufactured by Elgin Butler Company and shall conform to ASTM C-126, Grade S, Type I & II, selected from the manufacturer’s standard colors. Sized for 3/8” mortar joints (except 6T sized for 5/16” mortar joints).

Dimensions in Inches: Nominal 2, 4, 6, 8 (8″ not available in the 8W Series) Thicknesses x Height; Series/Sizes

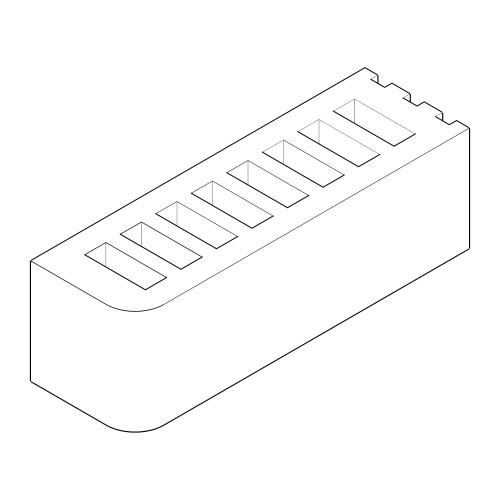

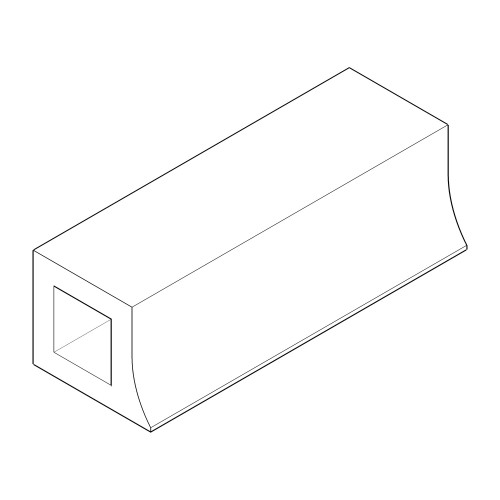

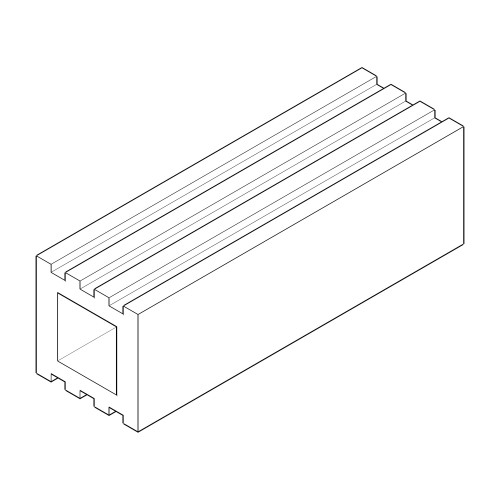

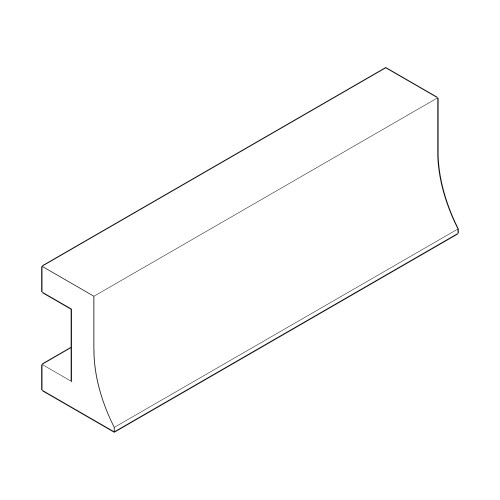

  • 6P: 3-5/8 x 11-5/8
  • 6T: 5 x 11-11/16
  • 4W 8-Square: 7-5/8 x 7-5/8
  • 8W: 7-5/8 x 15-5/8 (Not Available in 8” Thickness)

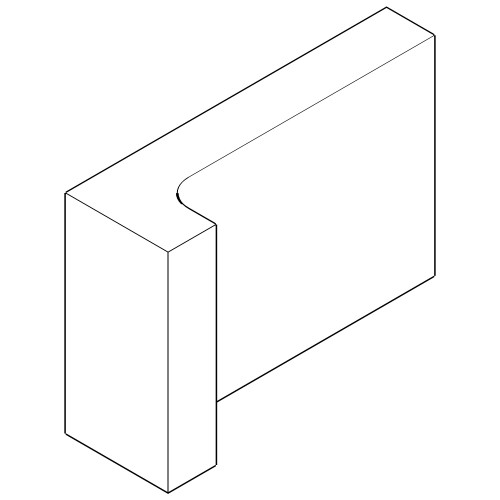

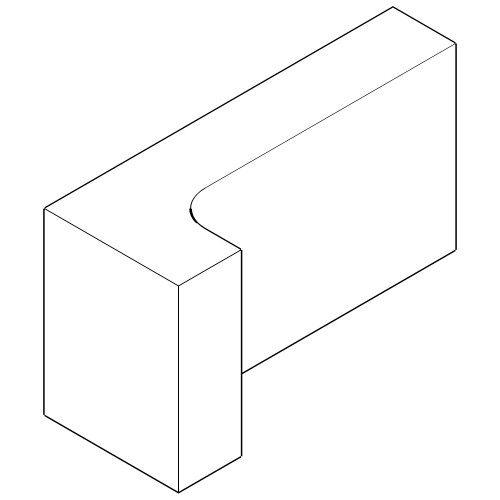

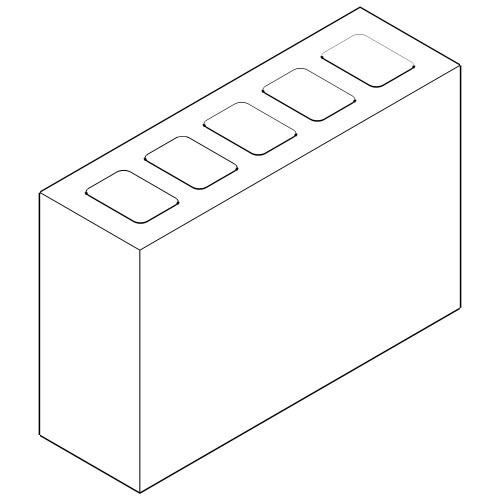

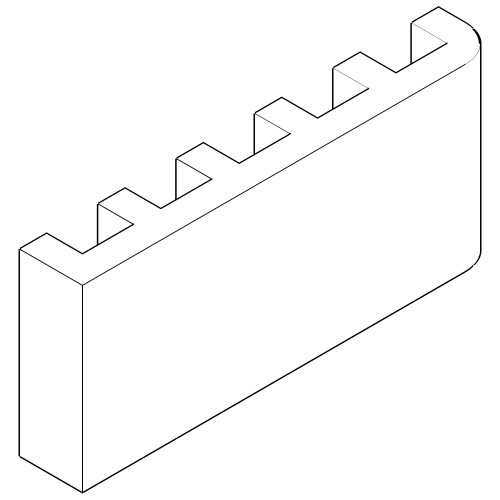

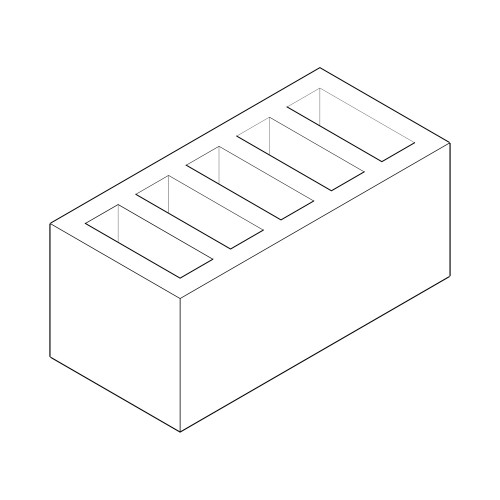

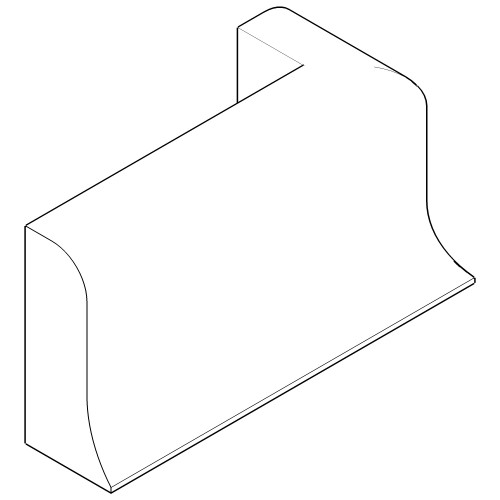

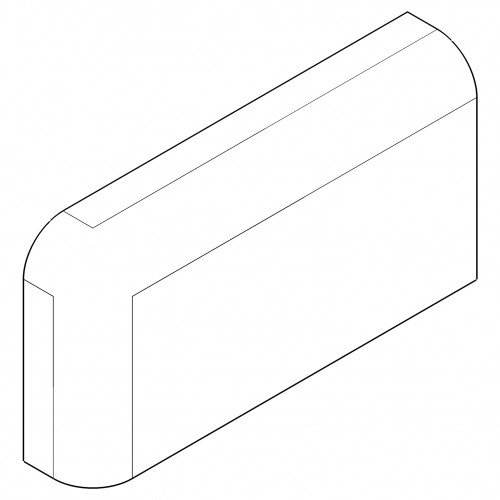

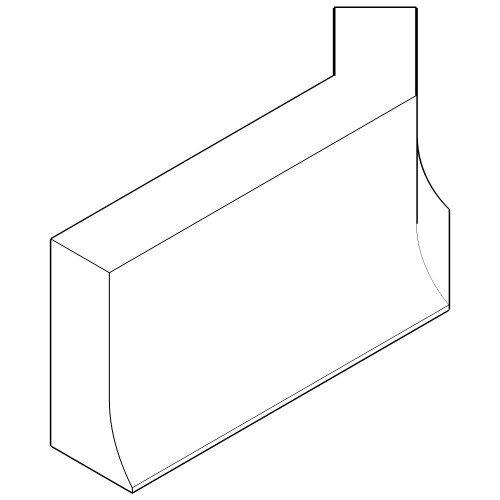

SGT Units are available in standard stretchers, shapes and cove base units. Special shapes may be manufactured.
