Shape Drawings
We have provided a library of design aids for architects, designers and other professionals working with our glazed masonry units, including Glazed Brick, Structural Glazed Tile, Thin Brick, Trim units, and more. Please download the ZIP file, which contains .JPG and .DWG files for most units.
Please note coring may vary.

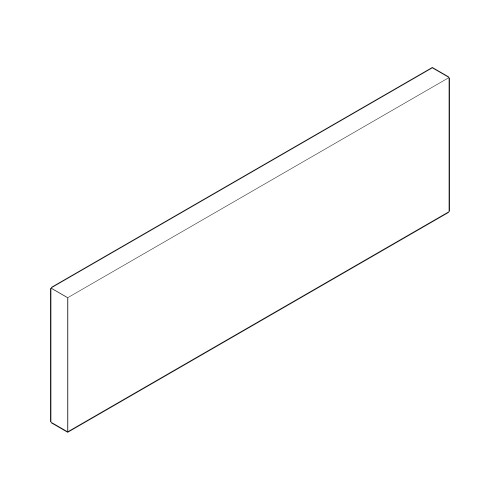

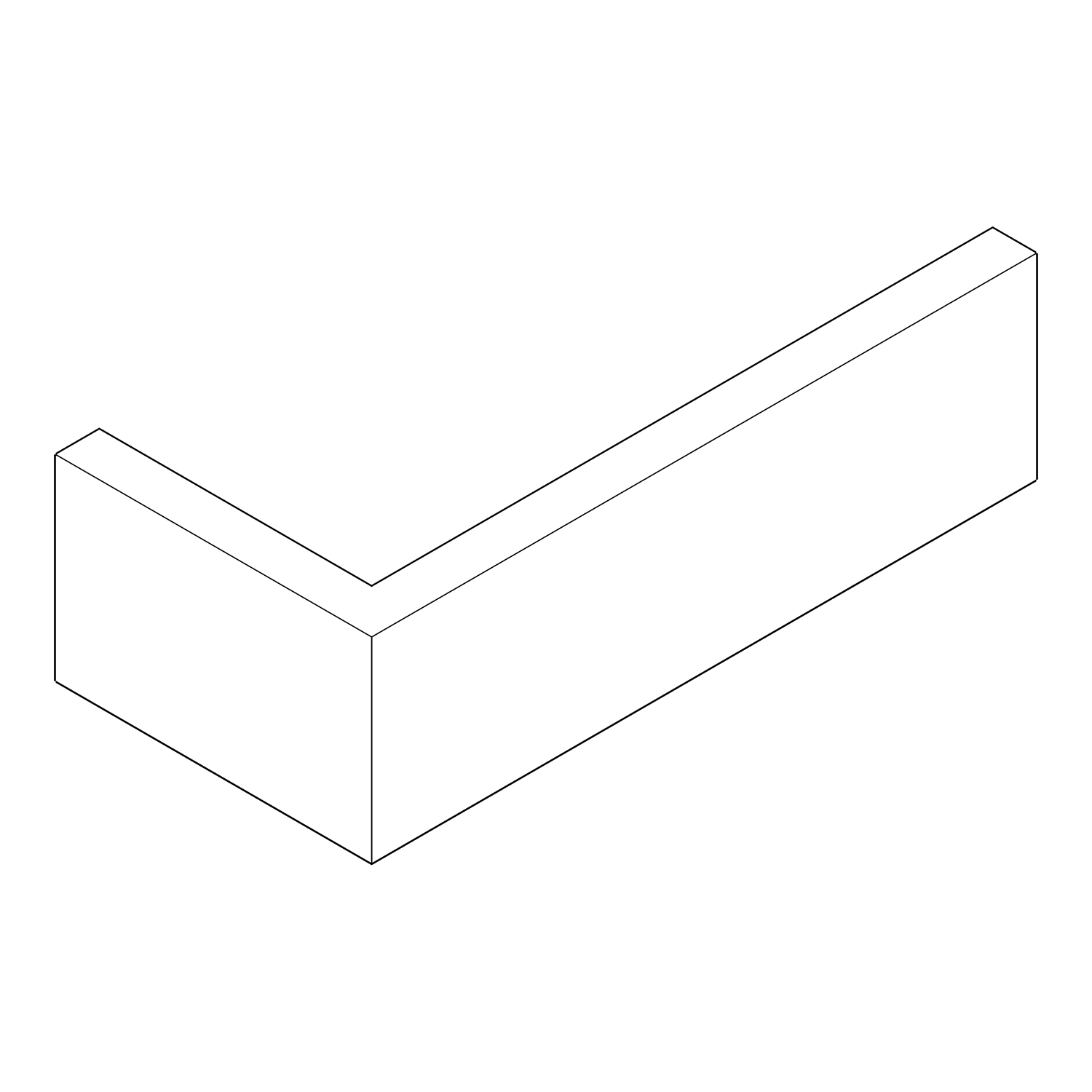

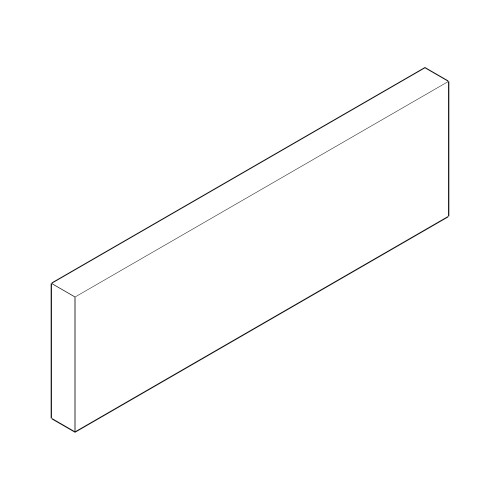

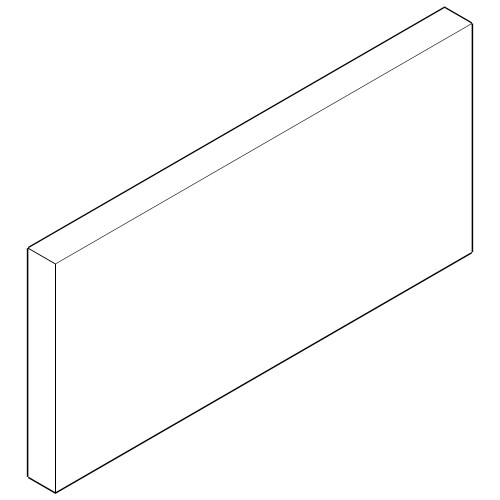

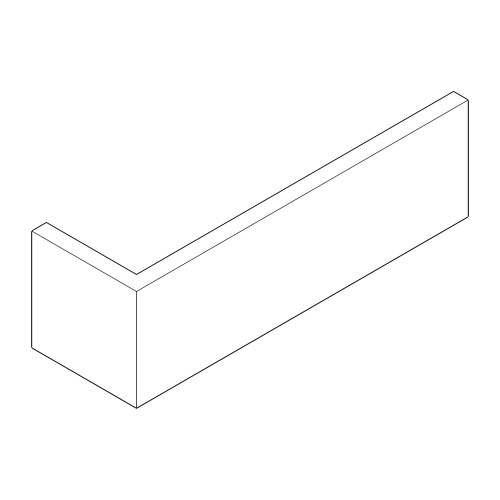

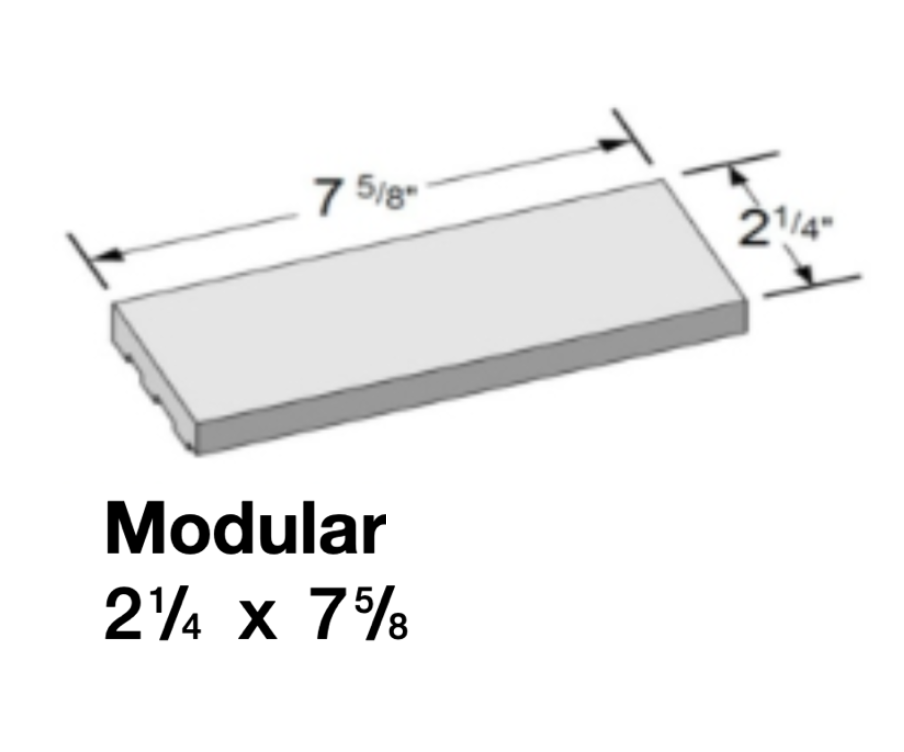

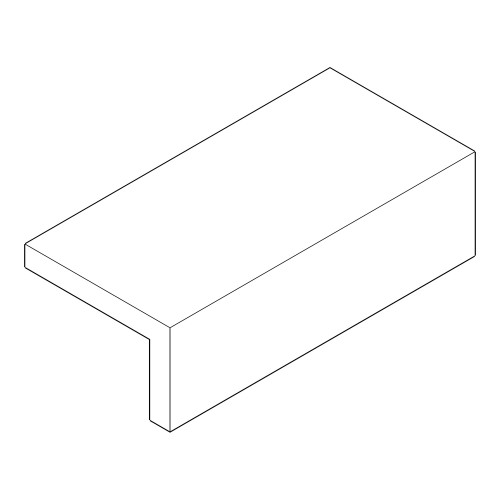

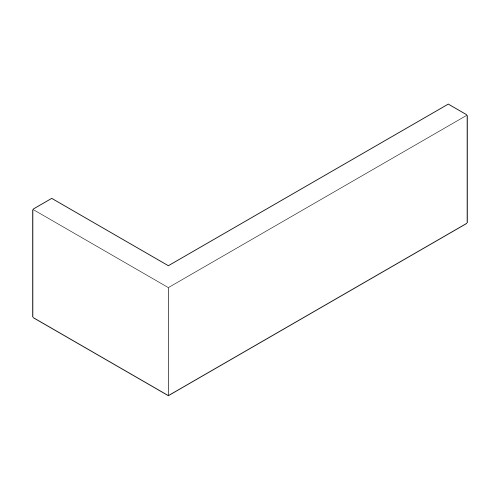

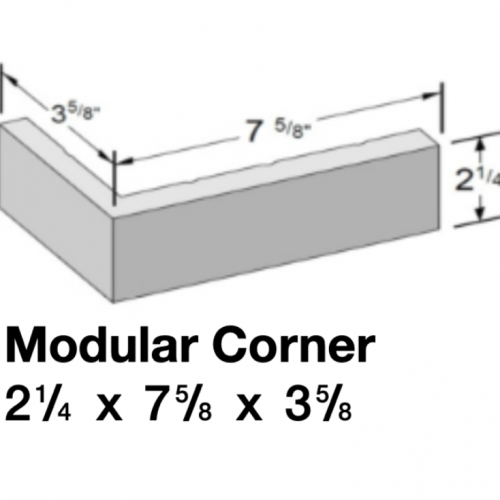

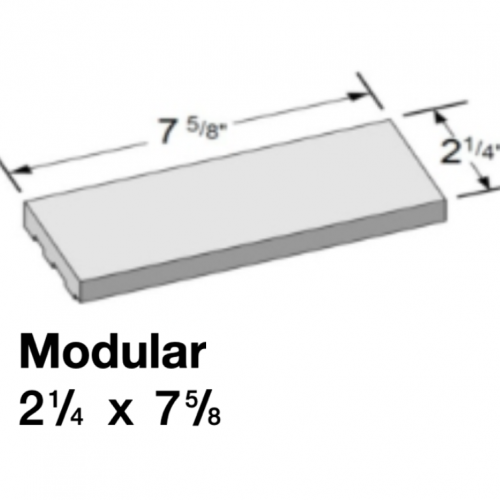

Architectural Glazed Thin Brick
EB Tile
Available in: EB Tile
Cerrastone
Available in: CerraStone
4P Closure Series
Available in: Glazed Brick
4S Modular Series Download 4S Modular Series Overview
Available in: Glazed Brick

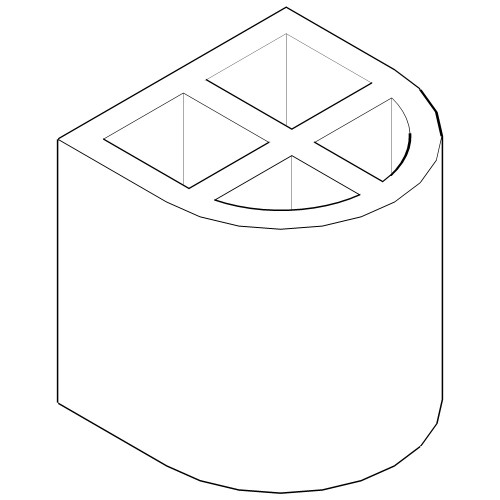

4W Series Download 4W Series Overview
Available in: Structural Glazed Tile, Glazed Brick
-
4WHA -
4WCA -
4WD -

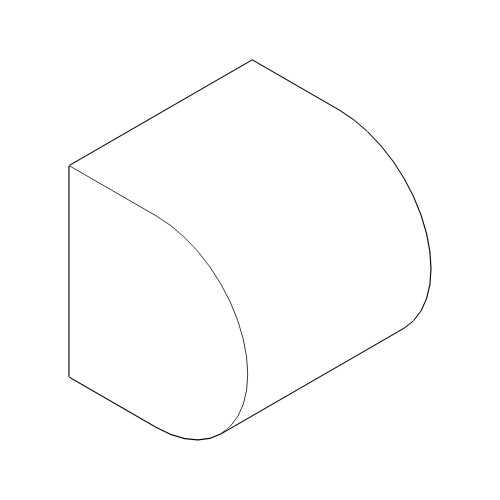

4W2A -
4W80D -
4W2 -
4W60D -
4W4A -
4W4 -
4W10A -
4W10 -
4W20A -
4W20 -
4W3 -
4W5 -
4W10D -
4WSU -
4W20D -
4W60SU -
4W624W62
5 5/8" x 7 5/8" x 7 5/8" one face glazed and one square end - 6" returnDownload 3D Shape Files -
4W80SU -
4W644W64
5 5/8" x 7 5/8" x 7 5/8" one face glazed and one bullnose end - 6" returnDownload 3D Shape Files -
4W63 -
4W654W65
5 5/8" x 7 5/8" x 7 5/8" two faces glazed and one double bullnosed end - 6"Download 3D Shape Files -
4W30A -
4W12C -
4W134W13
3 5/8" x 7 5/8" x 7 5/8" square end cap glazed on two faces, top and one endDownload 3D Shape Files -
4W24C4W24C
3 5/8" x 7 5/8" x 7 5/8" bullnose end cap glazed face, top and one endDownload 3D Shape Files -
4W82K4W82K
7 5/8" x 7 5/8" x 7 5/8" glazed face and one square end with "L" Kerf - 8" returnDownload 3D Shape Files -
4W824W82
7 5/8" x 7 5/8" x 7 5/8" glazed one face and one square end - 8" returnDownload 3D Shape Files -
4W84K4W84K
7 5/8" x 7 5/8" x 7 5/8" glazed face and one bullnose end with "L" Kerf - 8" returnDownload 3D Shape Files -
4W84 -
4W254W25
3 5/8" x 7 5/8" x 7 5/8" bullnose end cap glazed on two faces, top and one endDownload 3D Shape Files
4W Series - Cove Base
Available in: Cove Base, Structural Glazed Tile
-
4W50AN4W50AN
1 3/4" x 7 5/8" x 7 5/8" one face glazed non-recessed cove base stretcherDownload 3D Shape Files -
4W50N4W50N
3 5/8" x 7 5/8" x 7 7/8" one face glazed non-recessed cove base stretcherDownload 3D Shape Files -
4W52NR4W52NR
4 5/16" x 7 7/8" x 8 5/16" non-recessed cove base square corner - 4" RIGHTDownload 3D Shape Files -
4W54NR4W54NR
4 5/16" x 7 7/8" x 8 5/16" non-recessed cove base bullnose corner - 4" LEFTDownload 3D Shape Files -
4W52ANR4W52ANR
2 7/16" x 7 7/8" x 7 5/8" non-recessed cove base square corner - 2" RIGHTDownload 3D Shape Files -
4W54ANR4W54ANR
2 7/16" x 7 7/8" x 7 5/8" non-recessed cove base bullnose corner - 2" RIGHTDownload 3D Shape Files
5J Kingsize Series
Available in: Glazed Brick

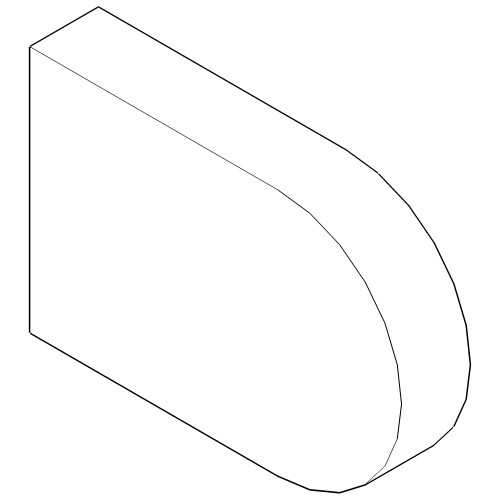

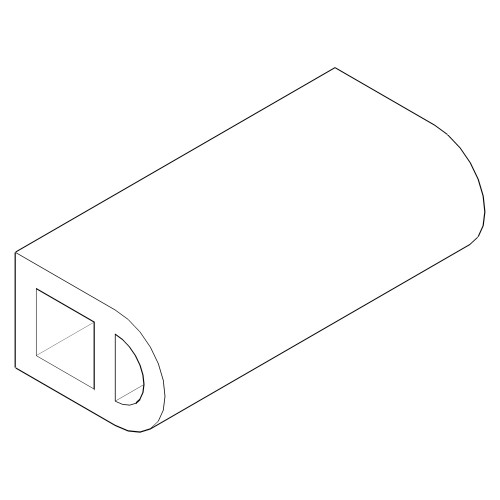

6P Utility Series Download 6P Utility Series Overview
Available in: Glazed Brick

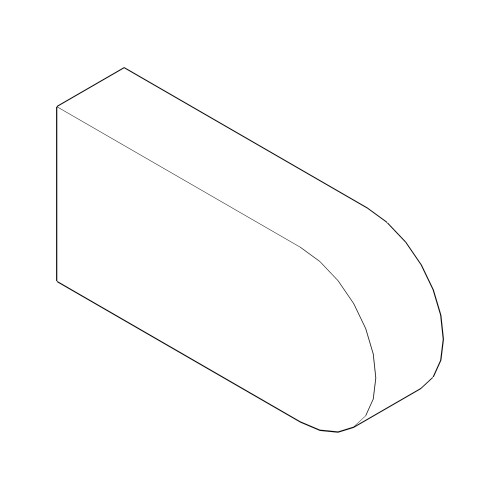

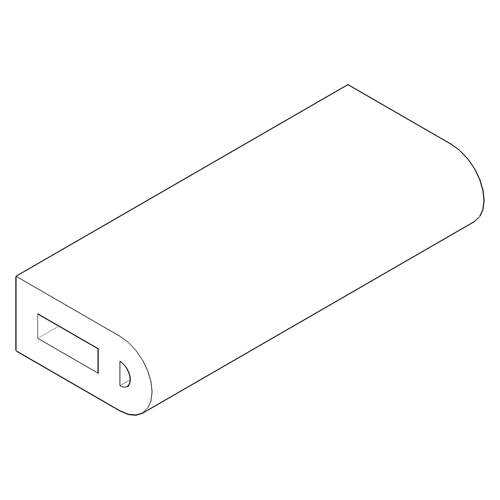

6S Norman Series
Available in: Glazed Brick
6T Series Download 6T Series Overview
Available in: Structural Glazed Tile
-
6TC60SU/D6TC60SU/D
5 5/8" x 5" x 11 11/16" 6TC60SU - glazed on one face 6TC60D glazed on two facesDownload 3D Shape Files -

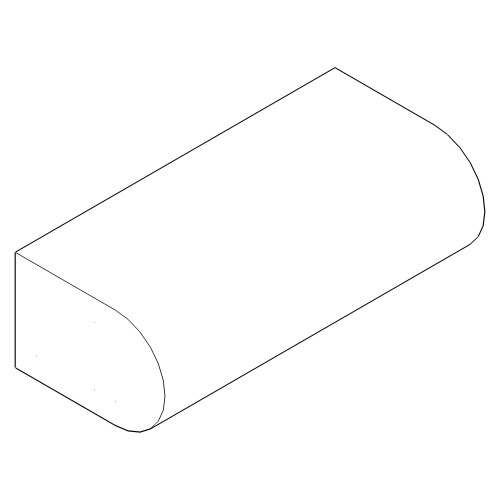

6P2 -
6T12CR -

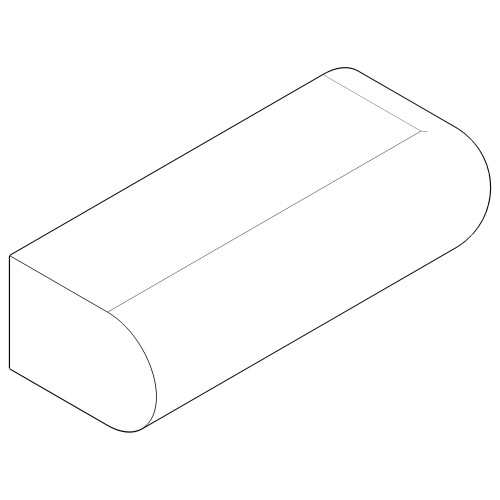

6P4 -
6TCSU -
6TCD -
6THA -
6TCA -
6TSU -
6T60SU -
6T2A -
6T2B6T2B
3 5/8" x 5" x 11 11/16" glazed on one face and one square end with kerf for L breakoutDownload 3D Shape Files -
6T2 -
6T4A -
6T4B6T4B
3 5/8" x 5" x 11 11/16" glazed on one face and one bullnose end with kerf for L breakoutDownload 3D Shape Files -
6T4 -
4T84T8
1 3/4" x 5" x 7 3/4" internal vertical cove quoin, inside face dimensionDownload 3D Shape Files -
6T20A -
6T20B6T20B
3 5/8" x 5" x 11 11/16" glazed on oneface and bullnose top with kerf for breakoutDownload 3D Shape Files -
6T20 -
6T10A -
6T10 -
6T160 -
6T3 -
6T5 -
6T12R -
6T24CL -
6PCSU -
6PCD -
6T24AR -
5T24AR
6T Series - Cove Base
Available in: Cove Base, Structural Glazed Tile
-
6T50DN6T50DN
3 5/8" x 5 1/2" x 11 5/8" non-recessed double faced cove base stretcherDownload 3D Shape Files -
6T520AN -
6T520N -
6T54ANL6T54ANL
1 3/4" x 5 5/16 x 11 11/16" non-recessed cove base bullnose corner - 2" LEFTDownload 3D Shape Files -
6T54NL6T54NL
1 3/4" x 5 5/16 x 11 11/16" non-recessed cove base bullnose corner - 4" LEFTDownload 3D Shape Files -
6T57NL6T57NL
3 5/8" x 5 5/16" x 11 11/16" non-recessed cove base internal corner - 4" LEFTDownload 3D Shape Files -
4T58NR4T58NR
1 3/4" x 5 5/16" x 7 5/8" non-recessed cove base soap fitting with internal vertical cove - RIGHTDownload 3D Shape Files -
5T56ANL5T56ANL
1 3/4" x 5 5/16" x 9 5/8" non-recessed 45 degree cove base soap - LEFTDownload 3D Shape Files -
6T504NL6T504NL
1 3/4" x 5 5/16" x 11 11/16" non-recessed cove base bullnose door jamb corner - LEFTDownload 3D Shape Files -
6T502XLN6T502XLN
3 5/8" x 5 5/16" x 11 11/16 non-recessed cove base square door jamb - 4" LEFTDownload 3D Shape Files -
6T52LN6T52LN
1 3/4" x 5 5/16" x 11 11/16" non-recessed cove base square corner - 4" LEFTDownload 3D Shape Files -
6T502LN6T502LN
1 3/4" x 5 5/16" x 11 11/16" non-recessed cove base square door jamb corner - 4" LEFTDownload 3D Shape Files -
6T502XANL6T502XANL
1 3/4" x 5 5/16" x 11 11/16" non-recessed cove base square door jamb - 2" LEFTDownload 3D Shape Files -
5T524NL5T524NL
1 3/4" x 5 5/16" x 9 5/8" non-recessed cove base bullnose sill corner - 4" LEFTDownload 3D Shape Files -
6T50A6T50A
1 3/4" x 5" x 11 11/16" one face glazed recessed cove base with 1/2" lip to accommodate flooringDownload 3D Shape Files -
6T506T50
3 5/8" x 5" x 11 11/16" one face glazed recessed cove base with 1/2" lip to accommodate flooringDownload 3D Shape Files -
6T54AL6T54AL
1 3/4" x 5 1/2" x 11 11/16" glazed one face and bullnose end recessed cove base corner, 1/2" lip to accomodate flooringDownload 3D Shape Files -
6T54L6T54L
3 5/8" x 5 1/4" x 11 11/16" glazed one face and bullnose end recessed cove base corner with 1/2" lip to accomodate flooringDownload 3D Shape Files -
6T52L6T52L
3 5/8" x 5 1/4" x 11 11/16" square recessed cove base return with 1/2" lip to accommodate flooringDownload 3D Shape Files -
6P50N6P50N
3 5/8" x 3 5/8" x 11 5/8" on face non-recessed cove base stretcher - 4"Download 3D Shape Files -
6P50AN6P50AN
1 3/4" x 3 5/8" x 11 5/8" one face non-recessed cove base stretcher - 2"Download 3D Shape Files -
6T50AN
8P Meridian Series
Available in: Glazed Brick
8W Series Download 8W Series Overview
Available in: Structural Glazed Tile
-
8WCA -
8WCSU -
8WSU -
8W4A -
8W4 -
8W64 -
8W2A -
8W2 -
8W62 -
8W10A -
8W10 -
8W20A -
8W20 -
8W258W25
3 5/8 " x 7 5/8" x 15 5/8" bullnose end cap glazed on two faces, top and one endDownload 3D Shape Files -
8W24AR8W24AR
1 3/4" x 7 5/8" x 15 5/8" bullnose end cap glazed face, top and one end - RIGHTDownload 3D Shape Files -
5W8 -
6WSU -
6W2 -
6W4 -
8WCV60SU -
8WCV60D -
8W30R -
8W24CR8W24CR
3 5/8"x7 5/8"x15 5/8" bullnose end cap; glazed face, top & one end RIGHTDownload 3D Shape Files
8W Series - Cove Base
Available in: Cove Base, Structural Glazed Tile
-
8W54NR8W54NR
3 5/8"x7 5/8"x15 5/8" non-recessed cove base one face and one bullnose end RIGHTDownload 3D Shape Files -
8W50N -
8W50AN -
8W52NR8W52NR
3 5/8"x7 5/8"x15 5/8" non-recessed cove base one face and one square end RIGHTDownload 3D Shape Files
EB Thin Brick
Available in: EB Thin Brick
-
EBTB 4SA SPL -

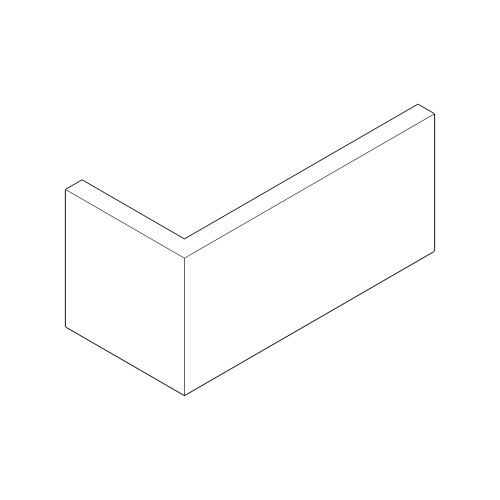

EBTB 4S2B SPL -

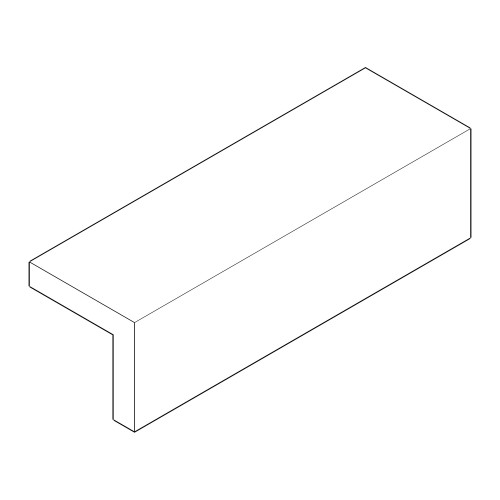

EBTB 4S10B SPL -
EBTB 6SA SPL -
EBTB 6S2B SPL -

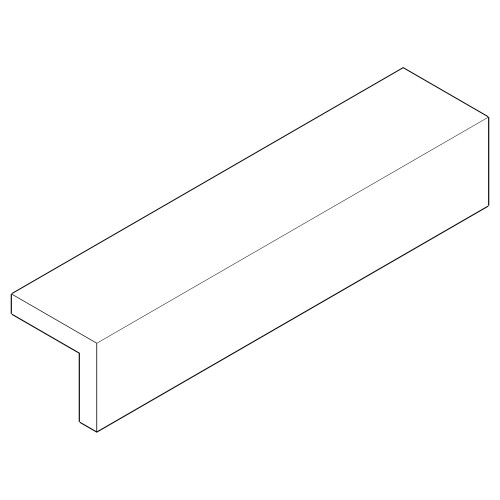

EBTB 6S10B SPL -
EBTB 4PA SPL -
EBTB 4P2B SPL -
EBTB 4P10B SPLEBTB 4P10B SPL
3 5/8" x 7 5/8" Closure EB Thin Brick square sill - 3 5/8" x 7 5/8" with 3 5/8" Sill -
EBTB 6PA SPL -
EBTB 6P2B SPL -

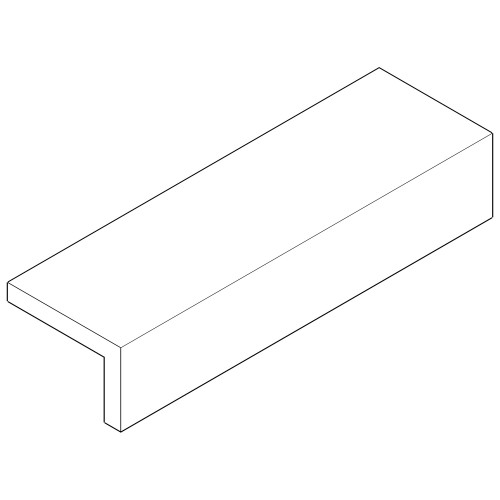

EBTB 6P10B SPL -
EBTB 4WA SPL -
EBTB 4W2B SPL -
EBTB 4W10B SPL

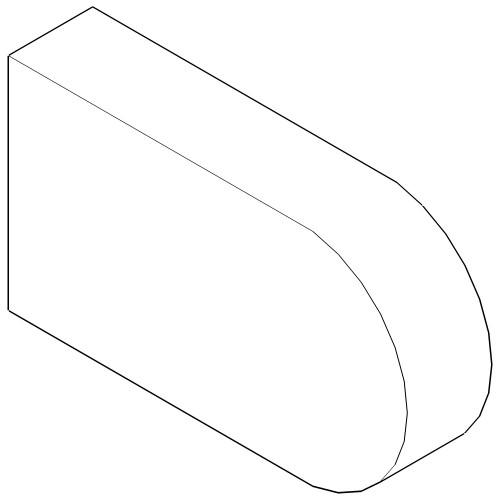

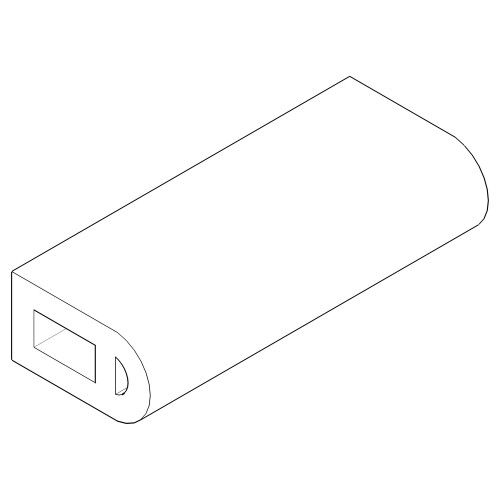

JX Jumbo Series
Available in: Glazed Brick
Quik-Base Download Quik-Base Overview
Available in: Quik-Base
-

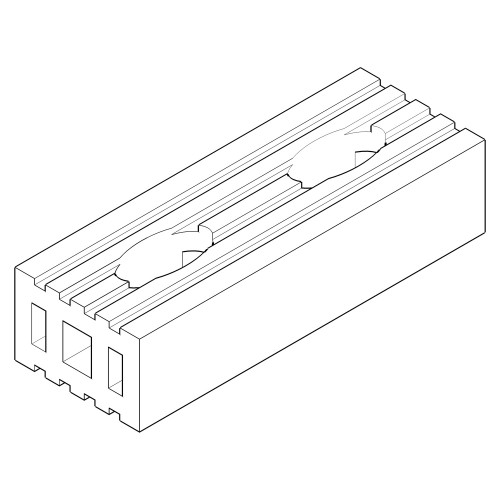

8PCV60D -
8PCV60SU/SM8PCV60SU/SM
5 5/8" x 3 5/8" x 15 5/8" Quik-Base glazed on one face (SM=backside glazed, but classed out)Download 3D Shape Files -
8PCV80D -
8PCV80SU/SM8PCV80SU/SM

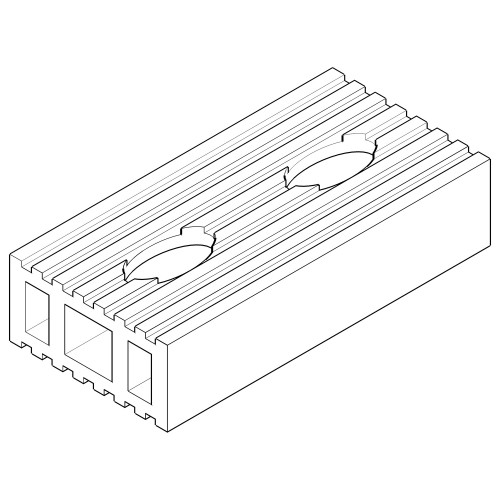

7 5/8" x 3 5/8" x 15 5/8" Quik-Base glazed on one face (SM=backside glazed, but classed out)Download 3D Shape Files -
8PSU -
8P2 -
8P4 -
3P623P62

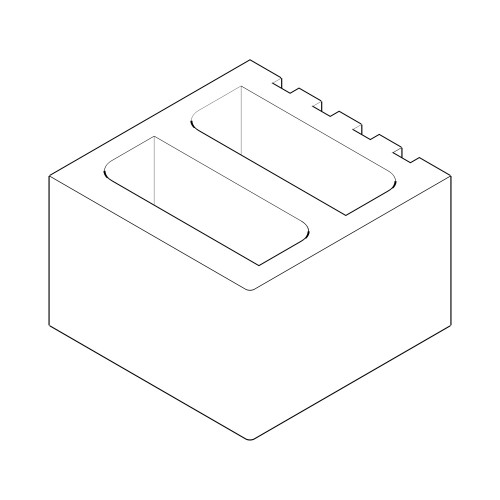

5 5/8" x 3 5/8" x 5 5/8" Quik-Base glazed on one face & one square returnDownload 3D Shape Files -

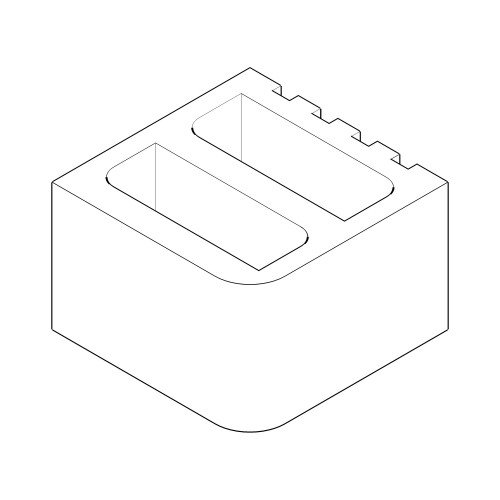

3P643P64
5 5/8" x 3 5/8" x 5 5/8" Quik-Base glazed on one face & one bullnose returnDownload 3D Shape Files -
3P633P63
5 5/8" x 3 5/8" x 5 5/8" Quik-Base glazed on two faces and one square returnDownload 3D Shape Files -

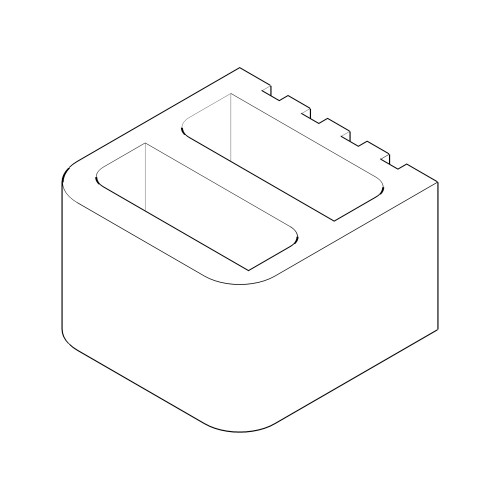

3P653P65
5 5/8" x 3 5/8" x 5 5/8" Quik-Base glazed on two faces and one bullnose returnDownload 3D Shape Files -
3P823P82
7 5/8" x 3 5/8" x 7 5/8" Quik-Base glazed on one face & one square returnDownload 3D Shape Files -
4P844P84

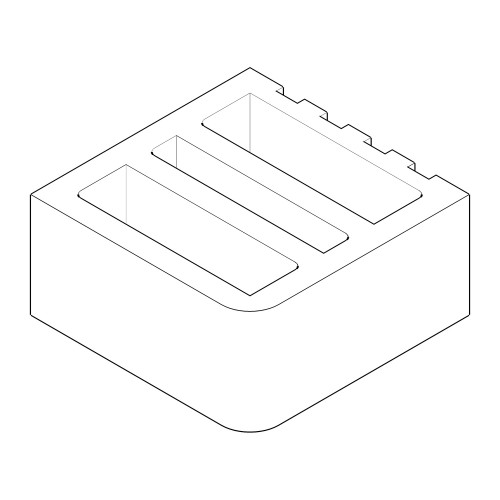

7 5/8" x 3 5/8" x 7 5/8" Quik-Base glazed on one face & one bullnose returnDownload 3D Shape Files -

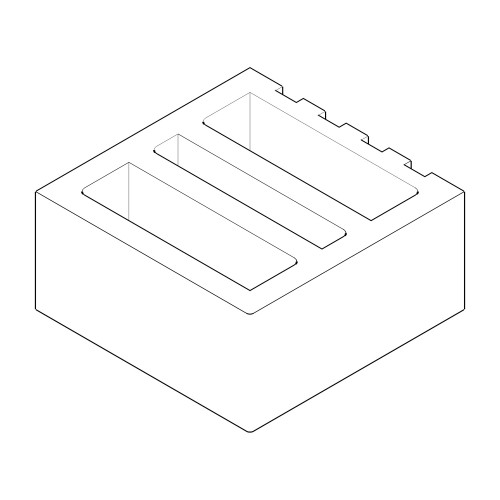

4P834P83
7 5/8" x 3 5/8" x 7 5/8" Quik-Base glazed on two faces and one square returnDownload 3D Shape Files -

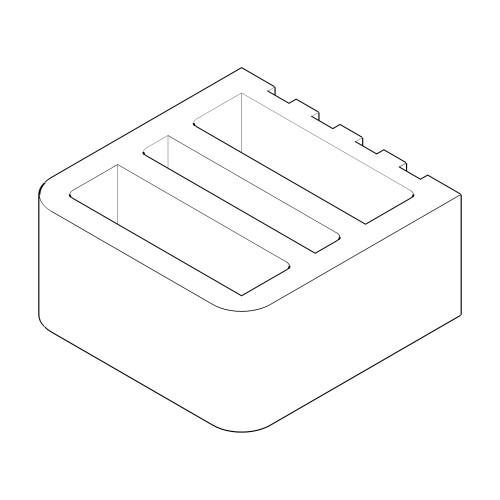

4P854P85
7 5/8" x 3 5/8" x 7 5/8" Quik-Base glazed on two faces and one bullnose returnDownload 3D Shape Files
Solar Screen Tile Download Solar Screen Tile Overview
Available in: Solar Screen Tile
-

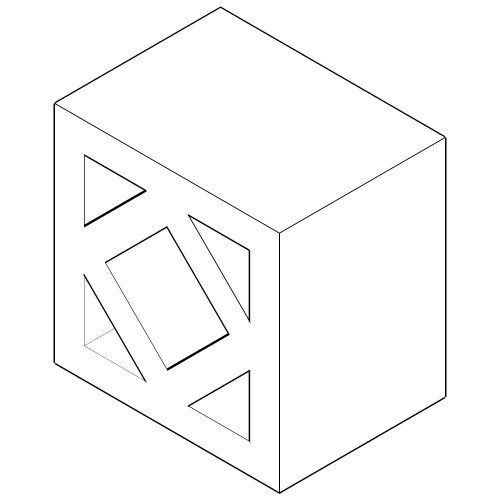

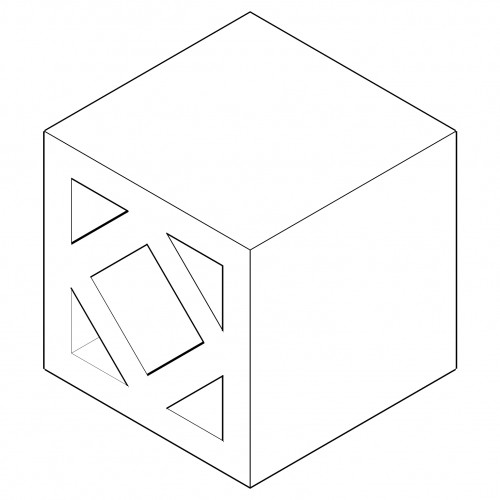

SST802-8SST802-8

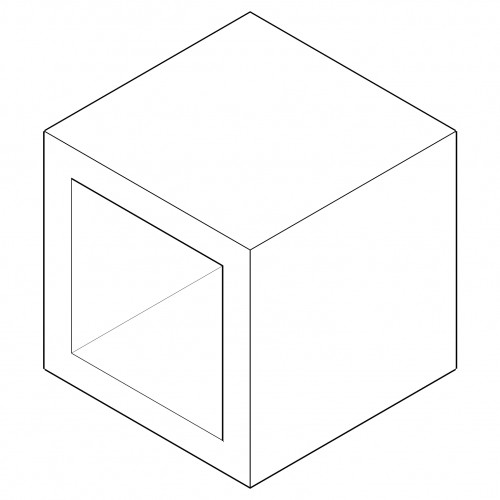

7 5/8" x 7 5/8" x 7 5/8" Solar Screen Tile - Diamon-In-A-Square PatternDownload 3D Shape Files -

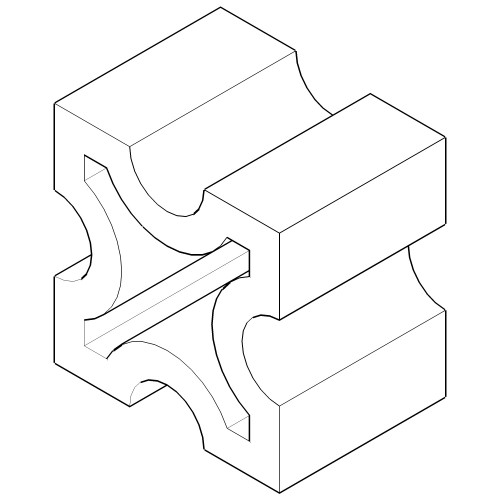

SST804-6 -

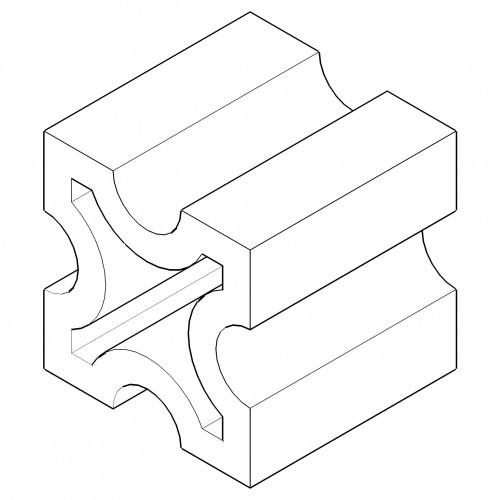

SST804-8 -

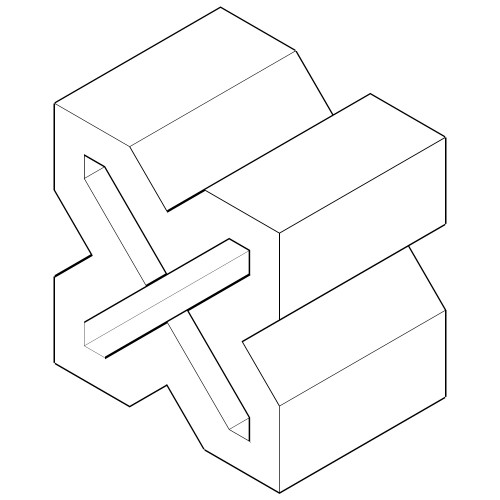

SST811-6 -

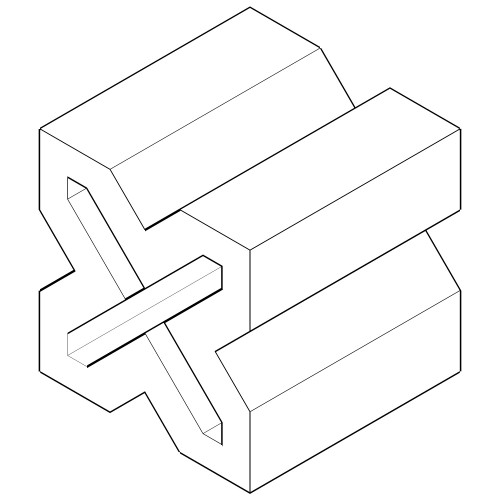

SST811-8 -

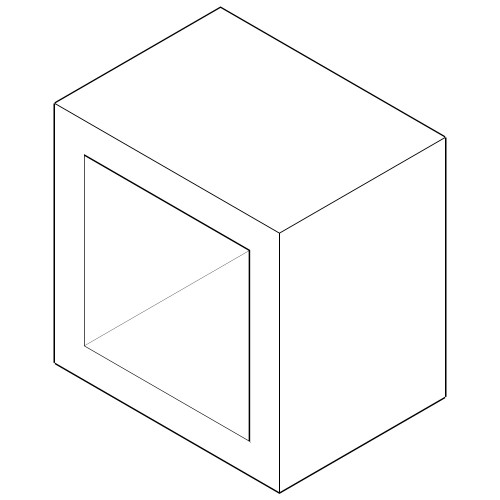

SST801-6 -
SST801-8 -
SST802-6SST802-6
5 5/8" X 7 5/8" X 7 5/8" Solar Screen Tile - Diamon-In-A-Square PatternDownload 3D Shape Files
SS Standard Size Series
Available in: Glazed Brick

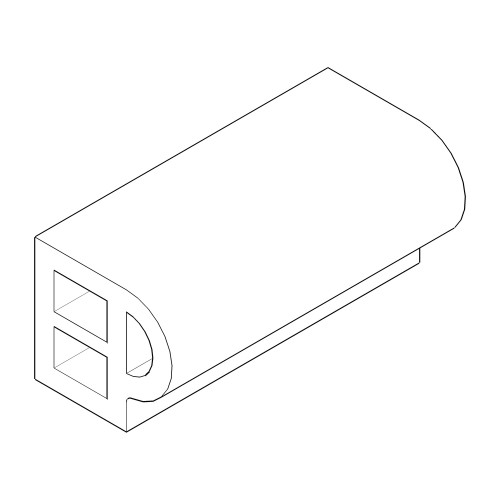

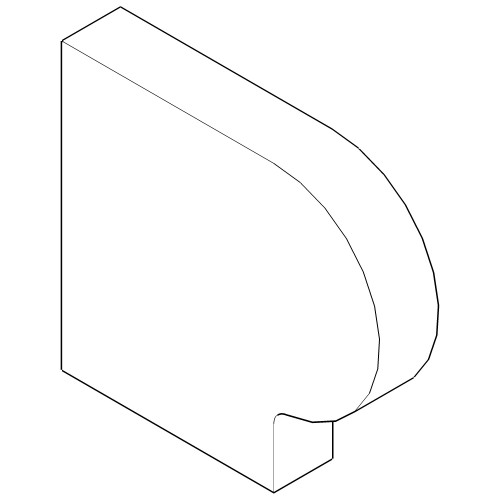

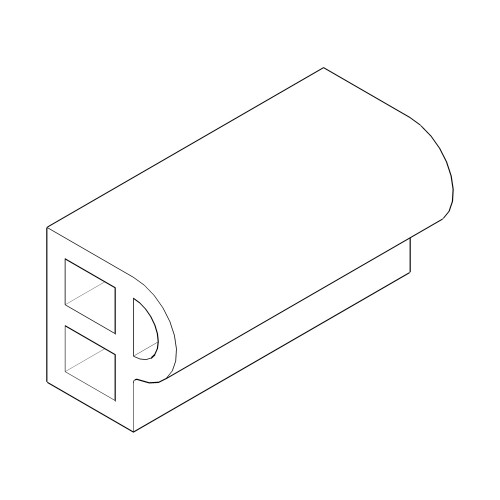

Trim
Available in: Trim Units
Quarry Tile Shapes
Available in: Quarry Tile
