Glazed Brick

Glazed Brick

Glazed Brick are extruded clay, ceramic glazed masonry units for wall applications, structural walls, partition walls, multi-wythe walls or veneers. The ceramic finish is available in many standard and custom colors, and the units offer a durable, permanent, non-fading wall system that has an impervious ceramic glazed face with a high abuse tolerance against impact, abrasion and graffiti.

Standard Color Set A

Standard Color Set B

Standard Color Set C

Standard Color Set D

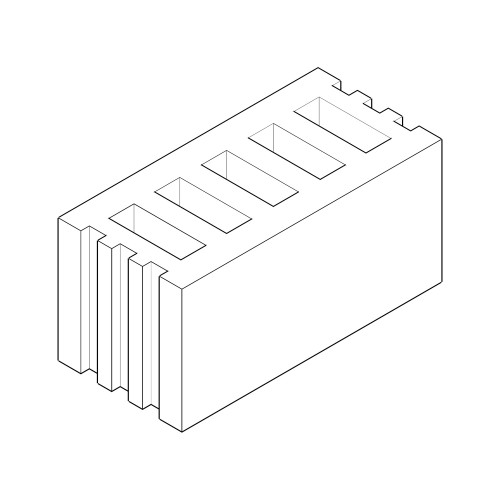

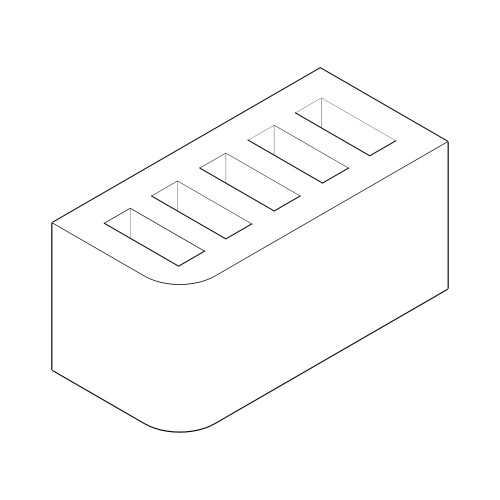

4P Closure Series

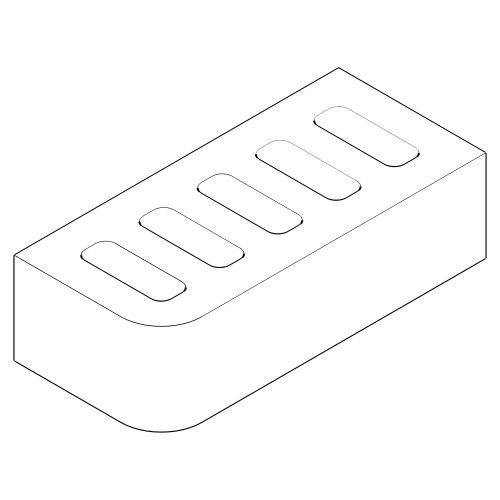

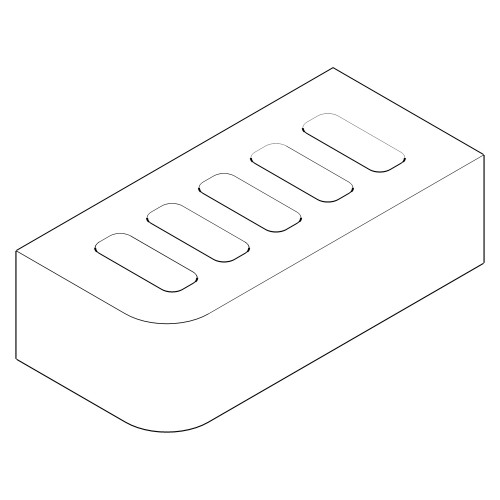

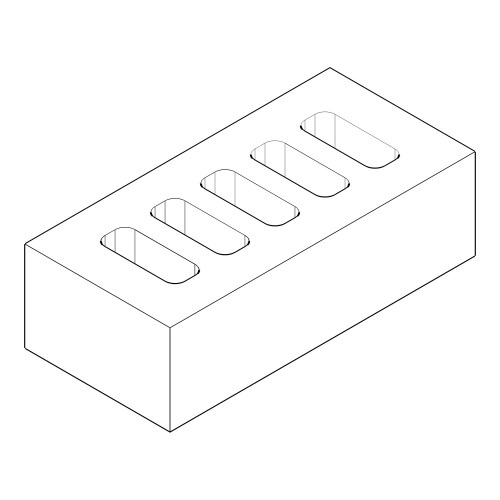

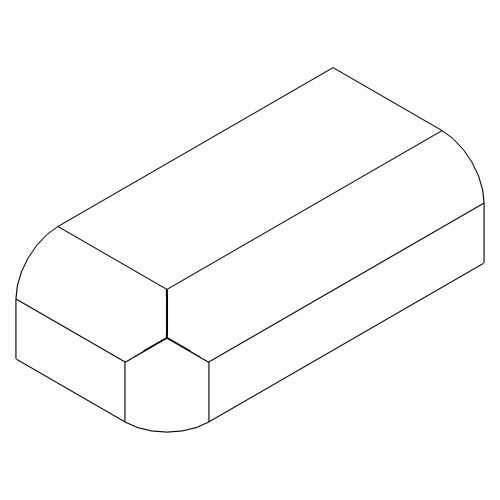

4S Modular Series Download 4S Modular Series Overview

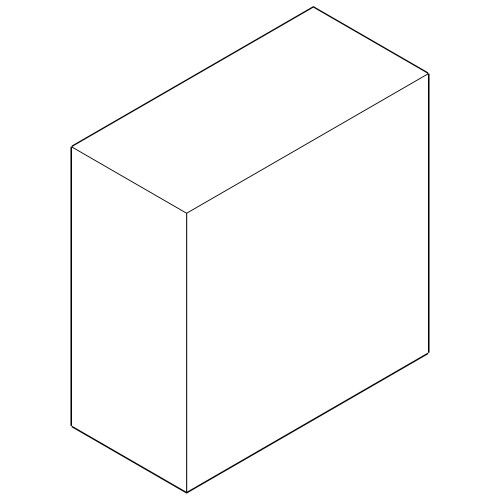

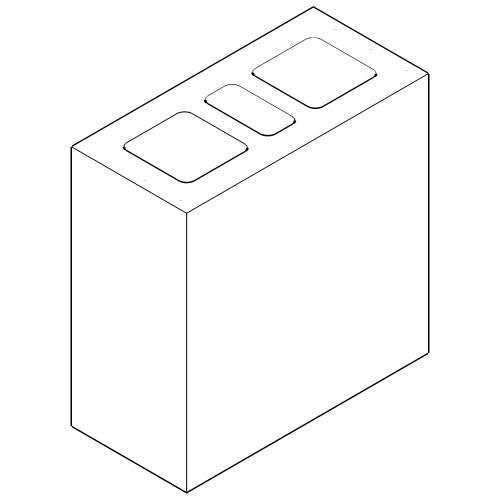

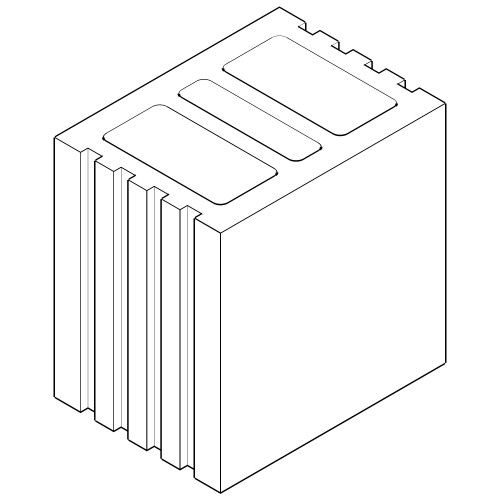

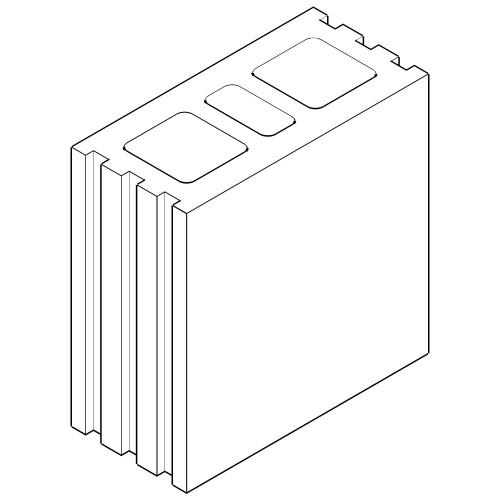

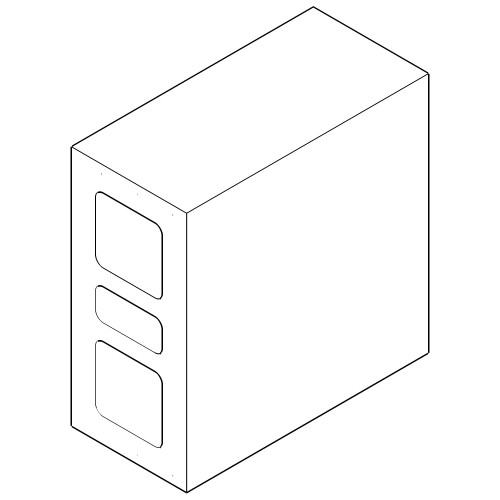

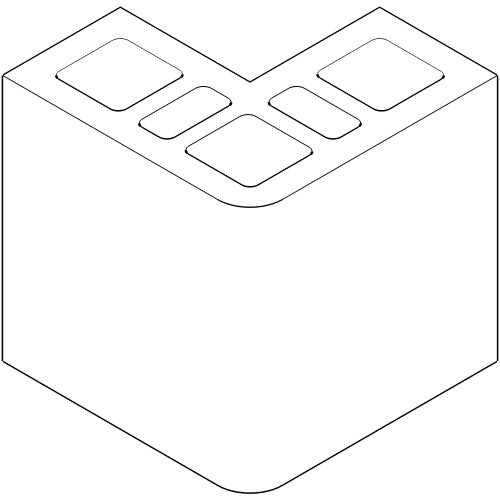

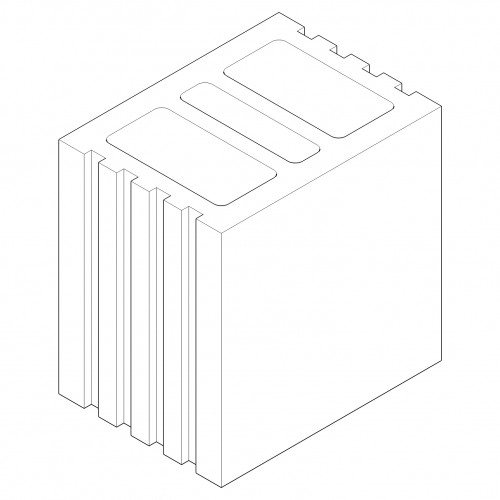

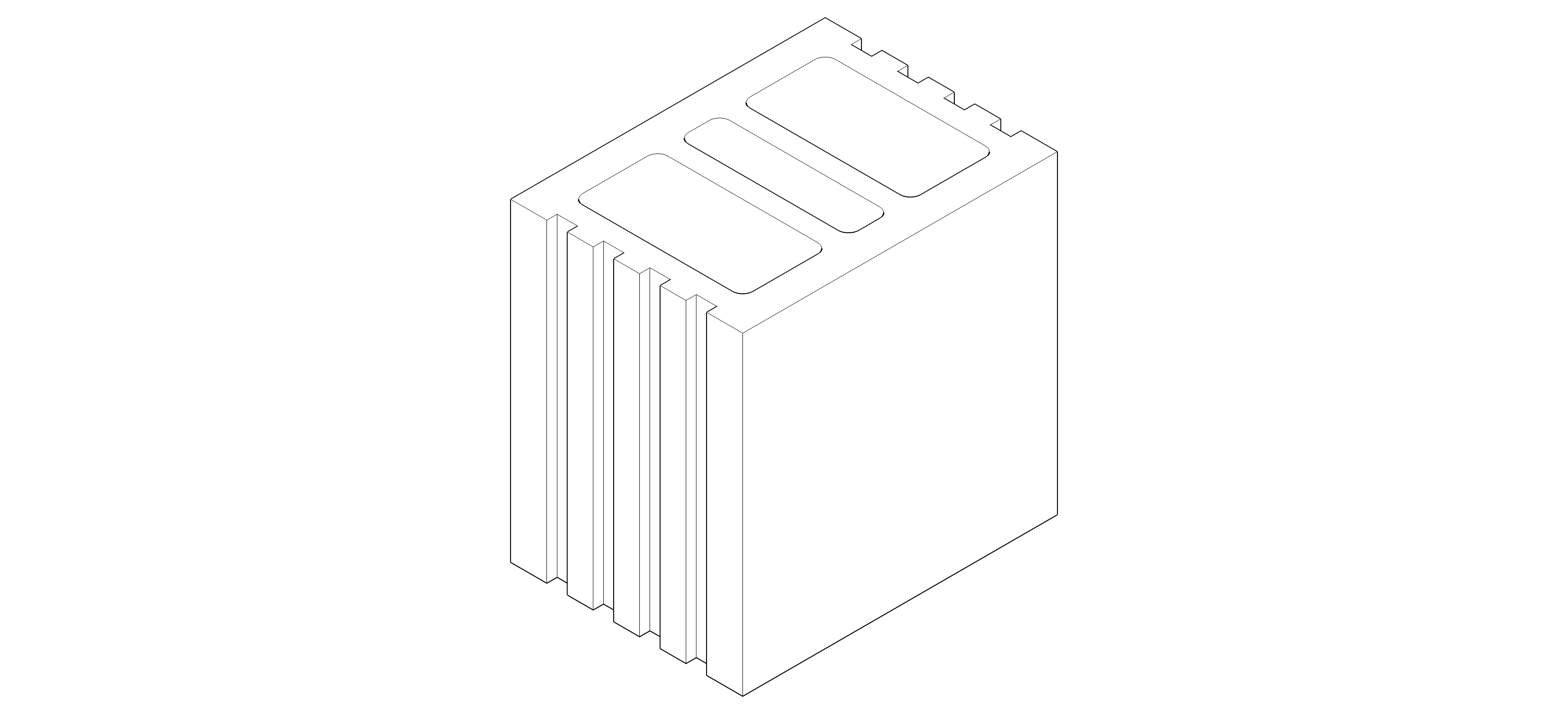

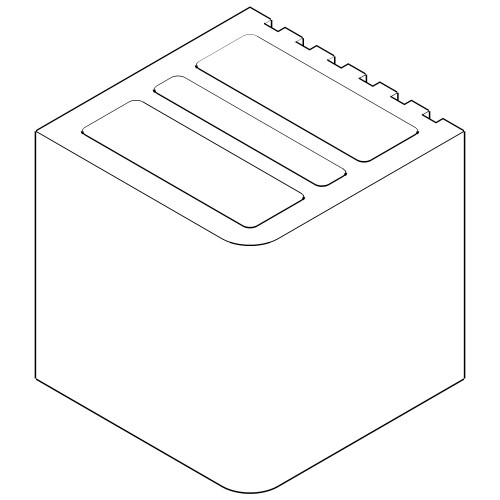

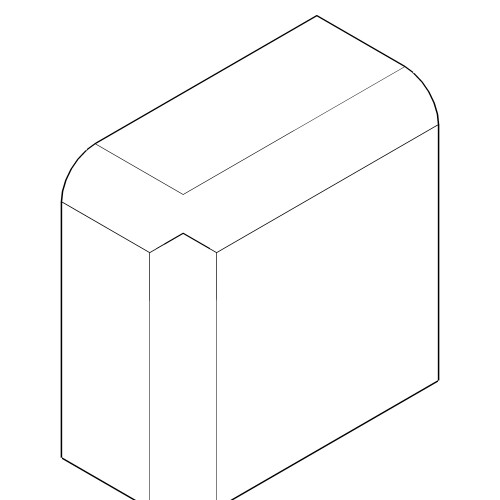

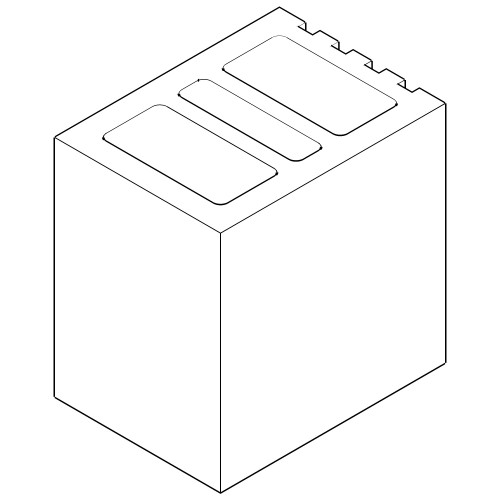

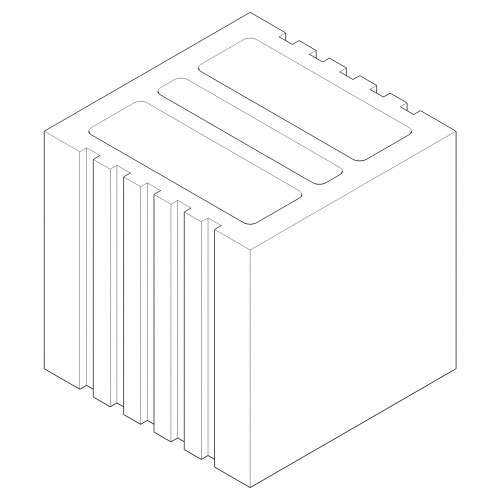

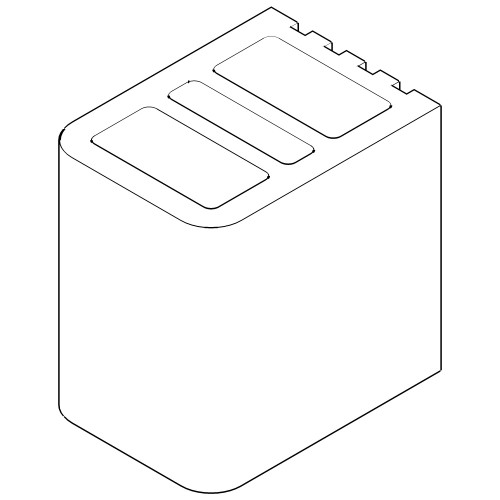

4W Series Download 4W Series Overview

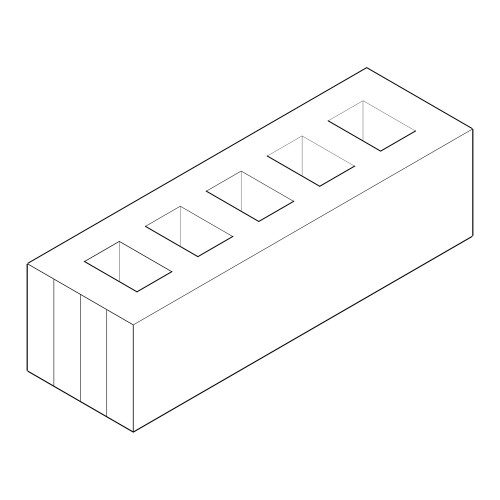

5J Kingsize Series

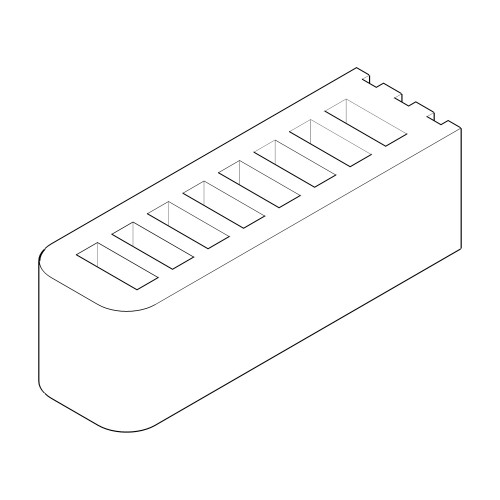

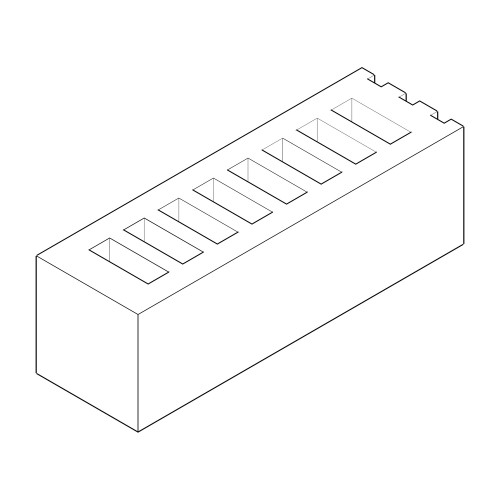

6P Utility Series Download 6P Utility Series Overview

6S Norman Series

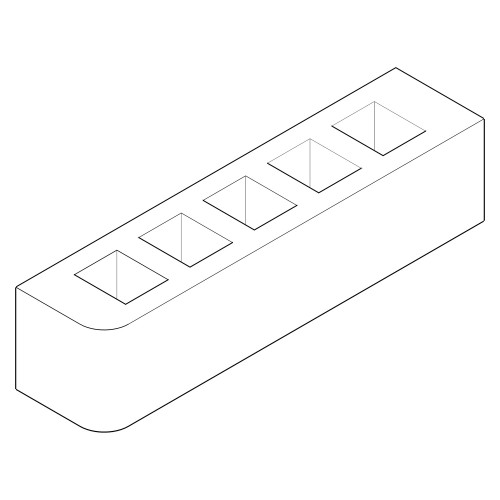

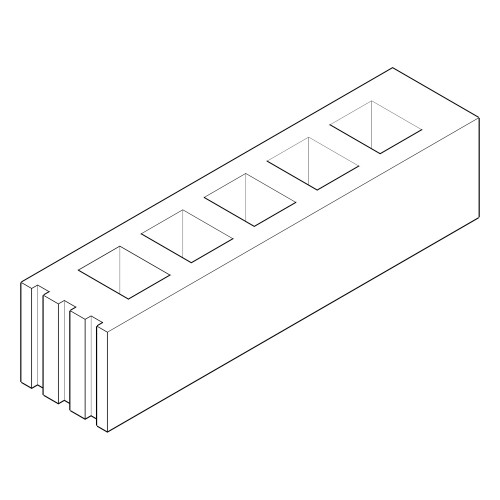

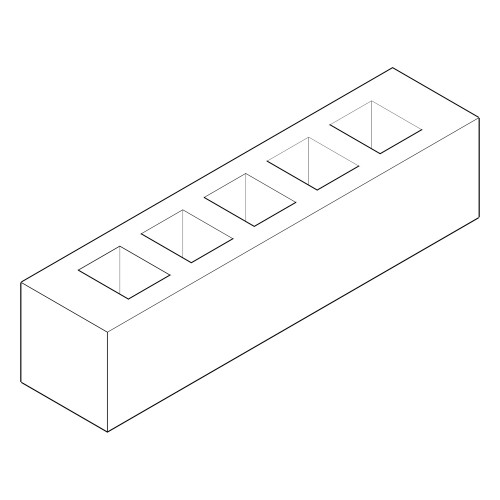

8P Meridian Series

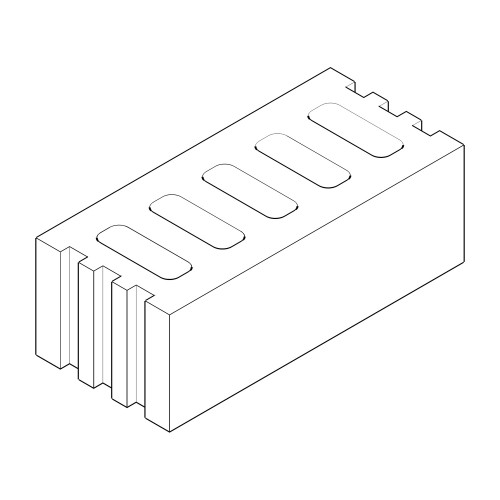

JX Jumbo Series

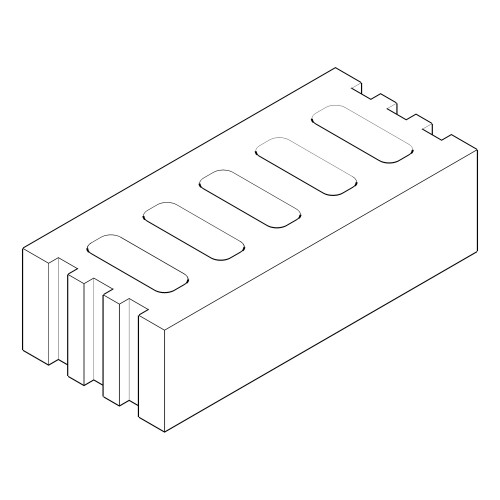

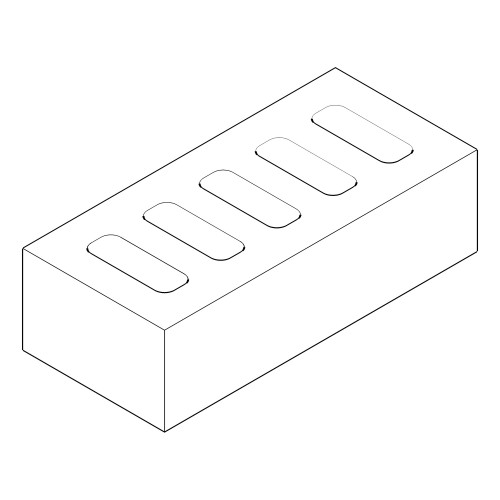

SS Standard Size Series

SPECIFICATIONS:
Ceramic Glazed Brick Units shall be Quality Ceramic Fire Clay Units as manufactured by Elgin Butler Company or approved equal conforming to ASTM C-1405, Grade S, Type I & II, Class Exterior (or Interior), Division Solid, or H40V (option of manufacturer), selected from the manufacturer’s standard colors. Sized for 3/8” mortar joints.

Dimensions in Inches: 3-5/8 Thickness (except 5J) x Height x Length; Series/Sizes

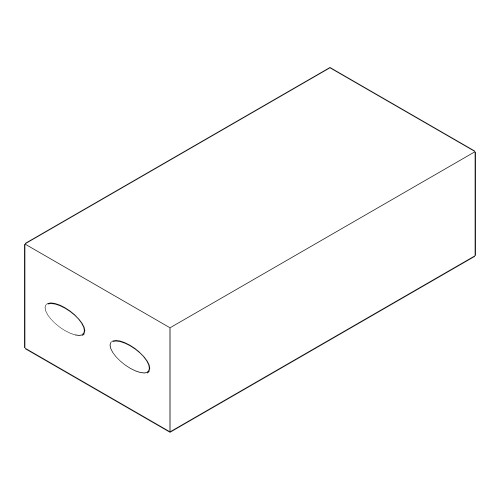

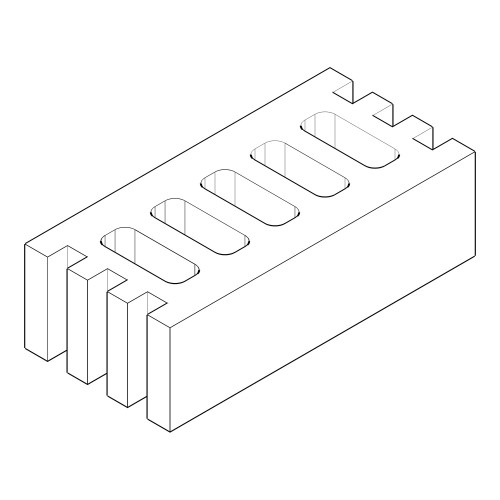

  • 4S Modular: 2-1/4 x 7-5/8
  • SS Standard: 2-1/4 x 8

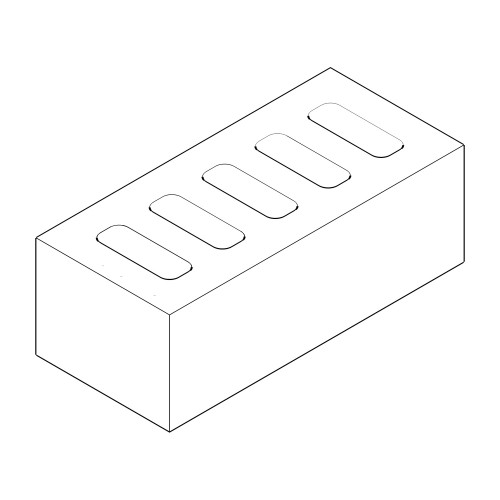

  • JX Jumbo: 2-3/4 x 8

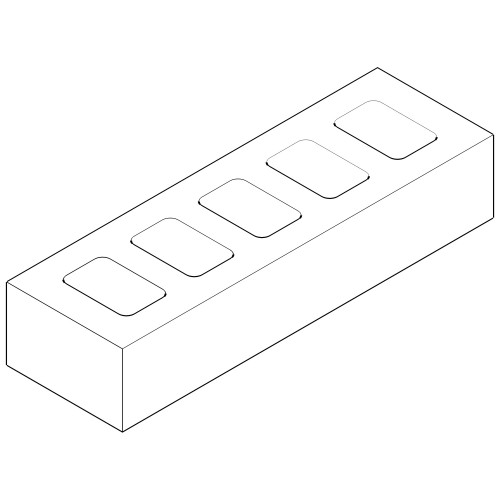

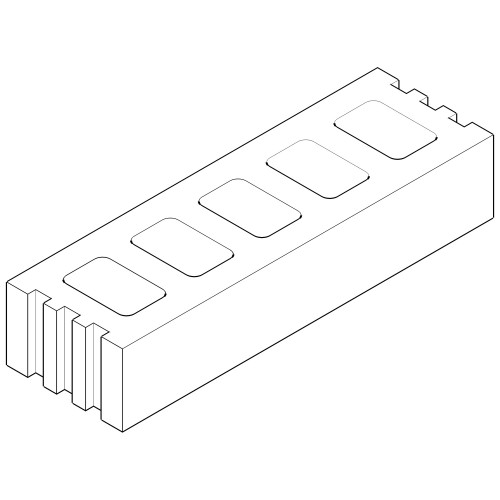

  • 6S Norman: 2-1/4 x 11-5/8

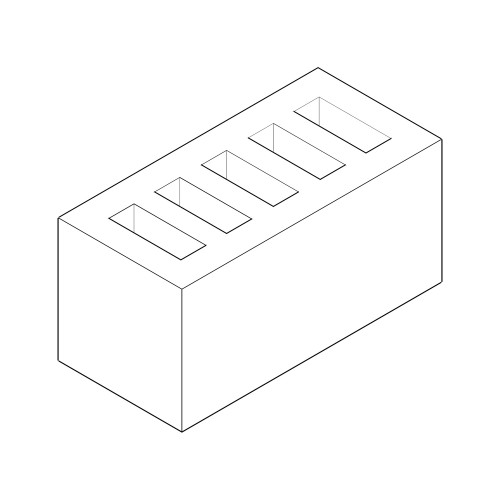

  • EN/4P Closure: 3-5/8 x 7-5/8

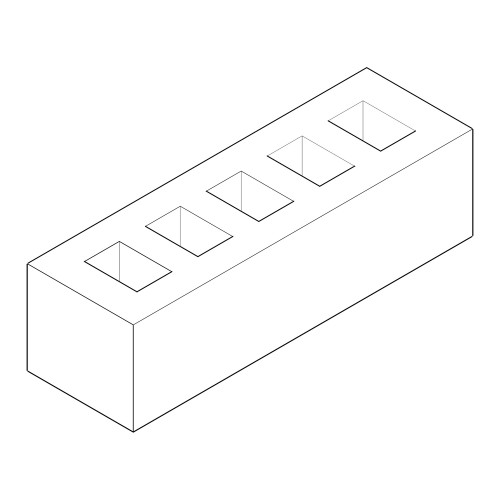

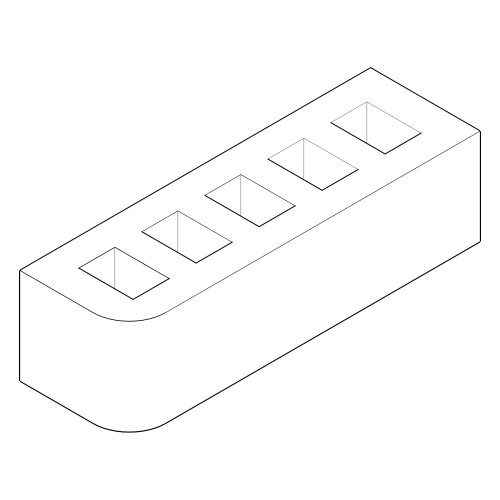

  • 5J King: 3 Thick x 2-5/8 x 9-5/8

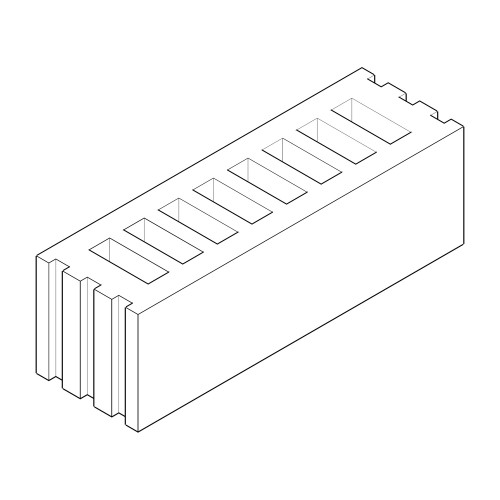

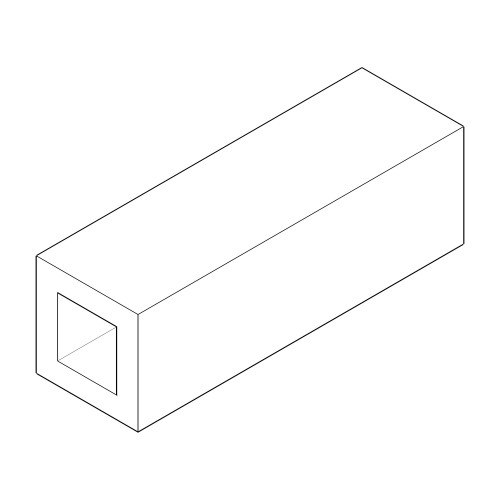

  • EN/6P Utility: 3-5/8 x 11-5/8

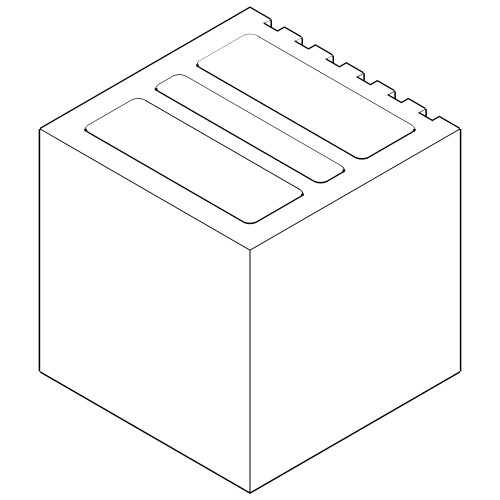

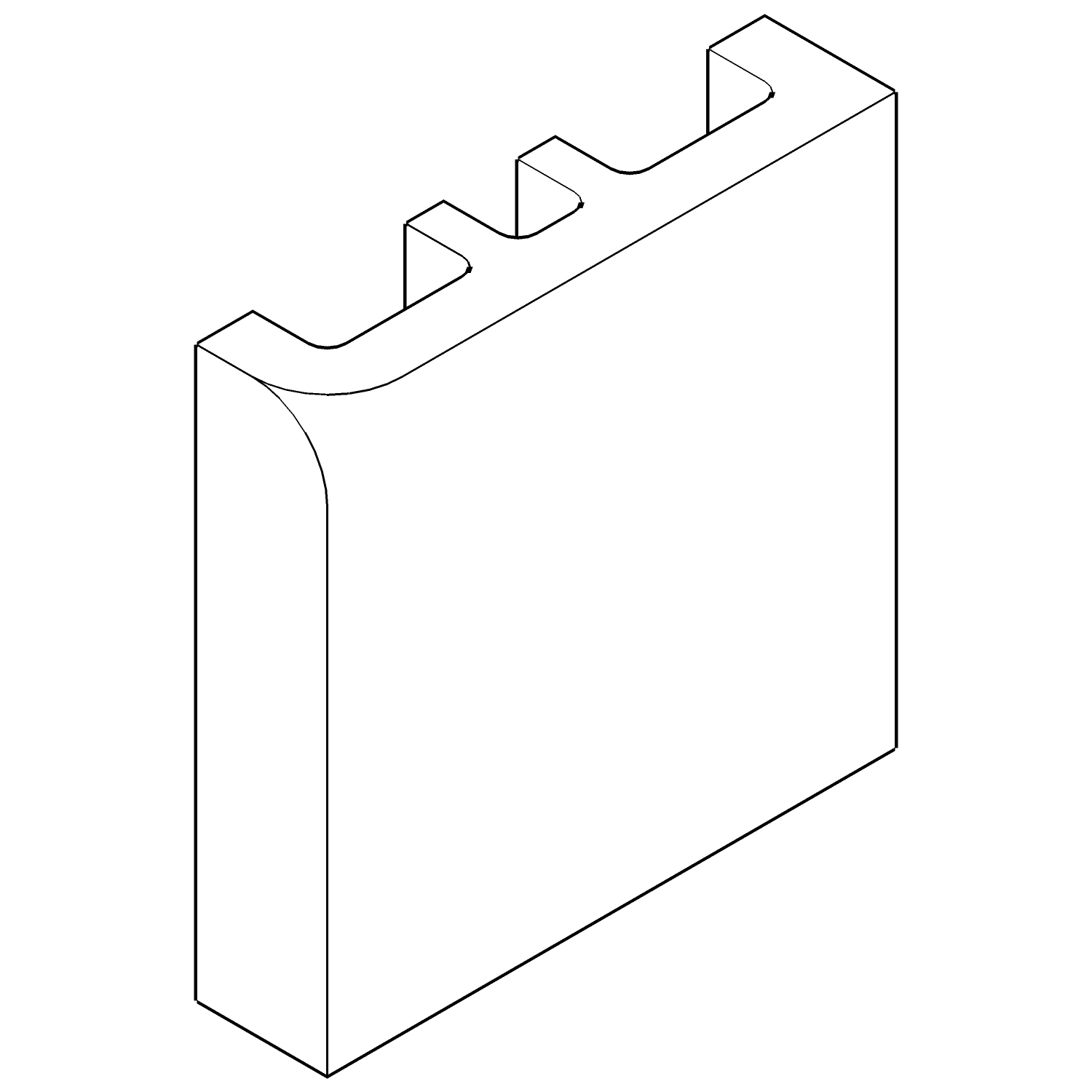

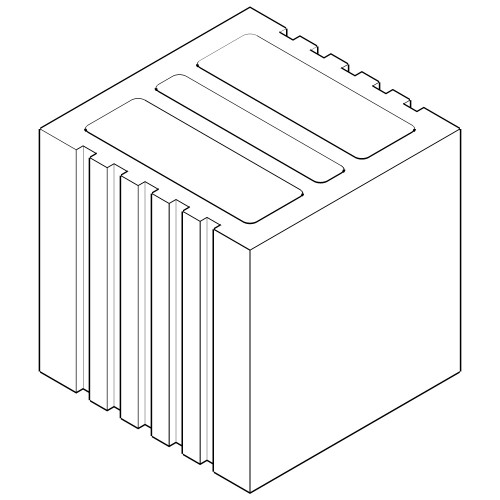

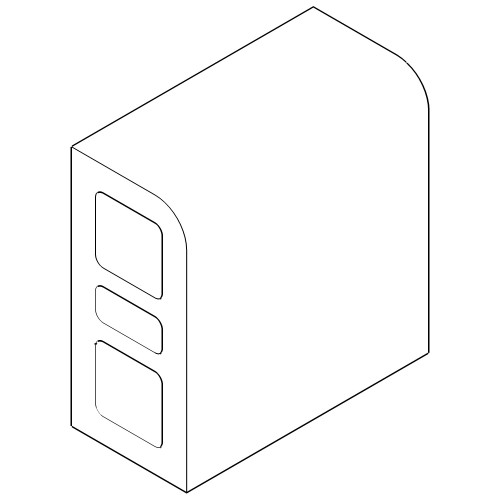

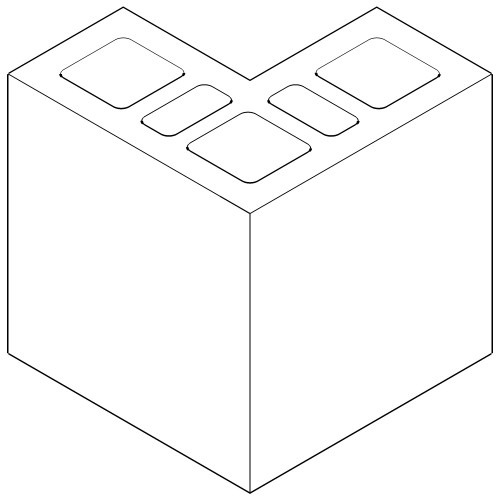

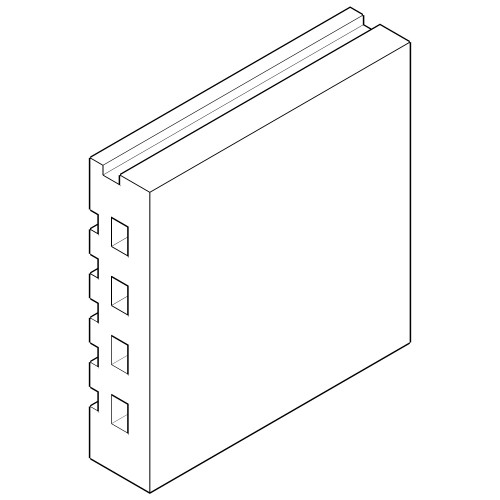

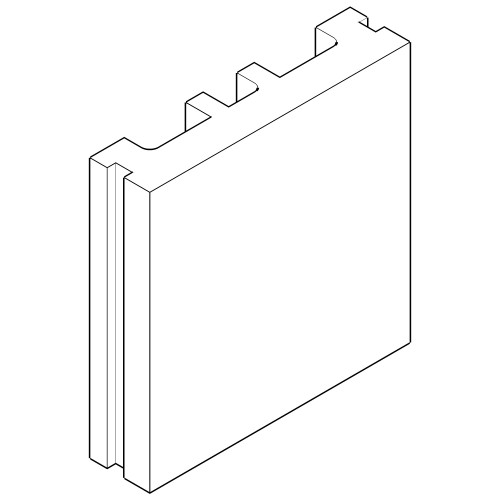

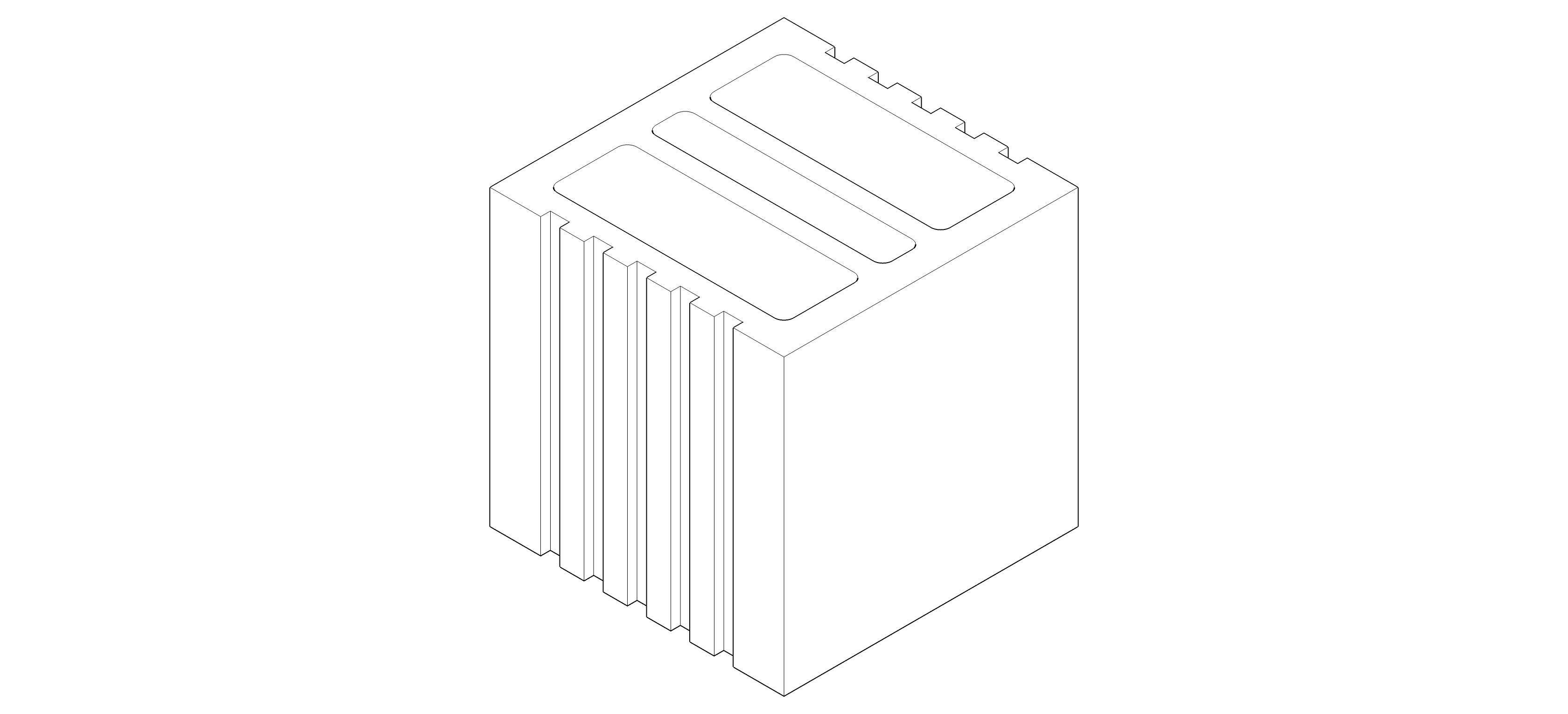

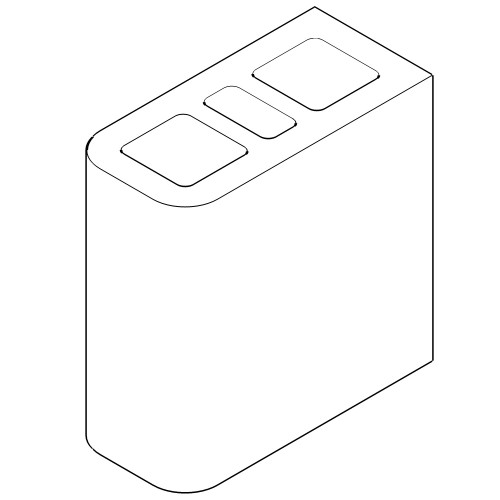

  • 4W 8-Square: 7-5/8 x 7-5/8

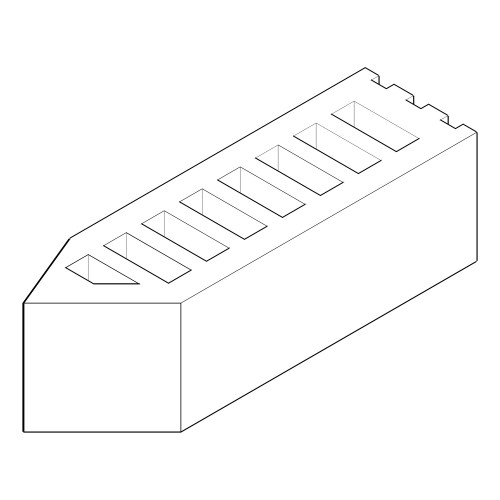

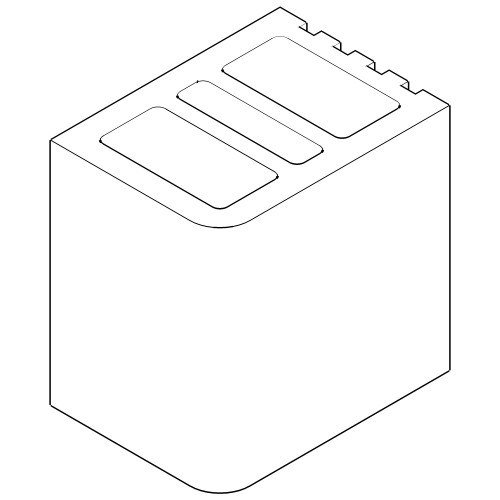

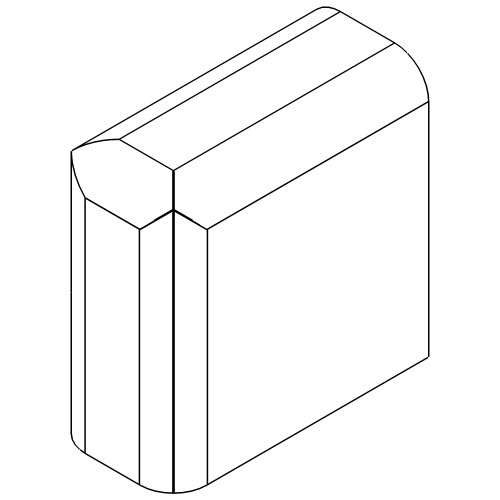

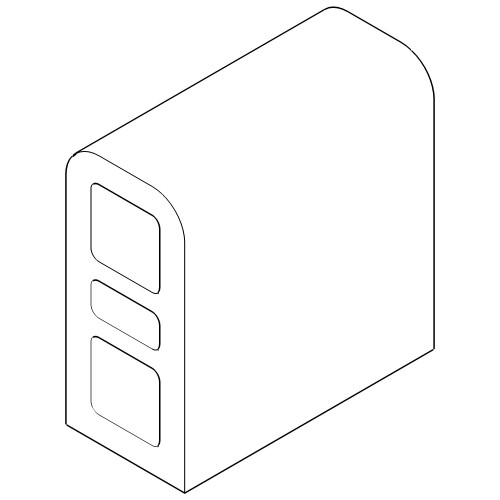

Glazed brick are typically available as stretchers, starters, jambs, sills, lintels, and angles with bullnose or square edges. Special shapes can also be manufactured.
